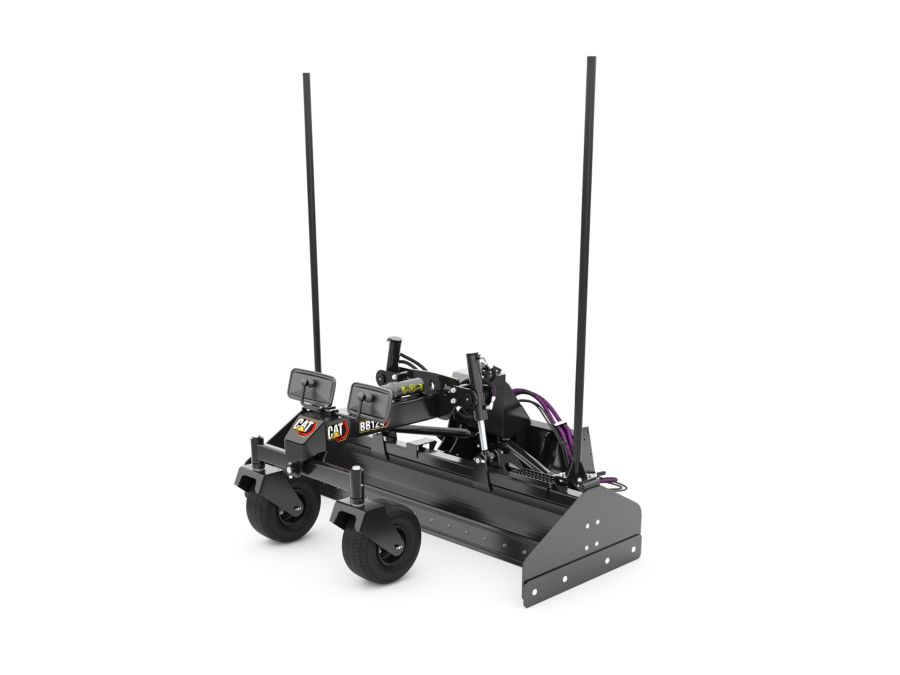

BB124

BB124
Cat
Cat® Box Blades are designed for grading and leveling. Each model is designed to operate both manually and automatically with the use of Laser or GPS grading systems.
Cat® Box Blades are designed for grading and leveling of large commercial properties, housing pads, roadways, and parking lots and can operate both manually and automatically with the use of Laser or GPS grading systems. Developed to integrate with AccuGrade® electronic components it can achieve high levels of grading accuracy while increasing productivity and reducing operating costs. Designs for athletic fields, concrete prep, grading in buildings and tighter spaces, parking lots, back-filling can all be achieved with the Box Blade Attachment.

Brochures and Spec Sheets

Gallery

Specifications

Specification Value Unit
Overall Width 99.4 in
Working Width 95.9 in
Optimal Hydraulic Flow
Requires Full Work Tool Control with Both Joysticks
Optimal Hydraulic Pressure
Overall Length 81.2 in
Overall Height 106.1 in
Weight 2149.5 lb
Tilt Angle Range
Raise 5 in
Lower 4 in
Interface Type
