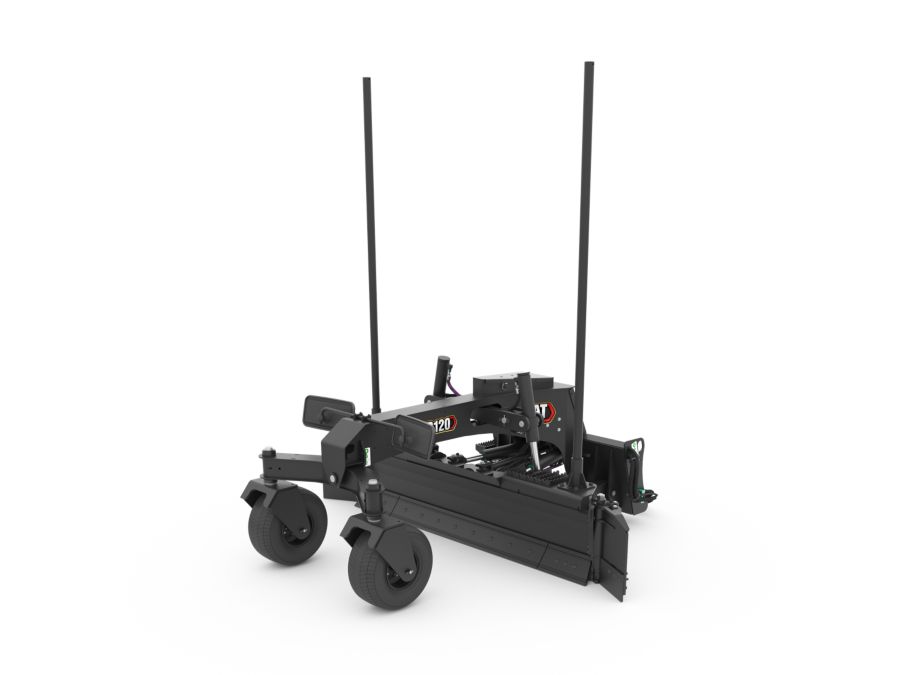

GB120 with Wings, Smart

Cat

Cat® Smart Grader Blade attachments are for cutting, moving and grading dirt, gravel, sand and virtually any other material used as a base.

Cat® Smart Grader Blade attachments are for cutting, moving and grading dirt, gravel, sand and virtually any other material used as a base. The smart grader blade is an industry first bringing cross slope to D3 Skid Steer Loader and Compact Track Loader platforms.

Brochures and Spec Sheets

Cat® Smart Grader Blades Brochure

Gallery

Specifications

Specification	Value	Unit
Overall Width	84.6	in
Blade Width	78	in
Width - Fully Angled	90.2	in
Optimal Hydraulic Flow
Optimal Hydraulic Pressure
Required Hydraulics
Overall Length	88.4	in
Overall Height with Masts	104.4	in
Overall Height	41.2	in
Weight	2204.6	lb
Tilt Angle Range
Maximum Blade Angle - Right/Left of Center
Blade Height	17	in
Maximum Cutting Edge Clearance	6	in
Maximum Cutting Depth	4	in
Interface Type
Working Width (Wings Closed)	84.6	in
Working Width (Wings Open)	81.3	in
Wing Rotation
Ground Clearance	6	in
