These buckets are designed for cleaning ditches, sloping, grading and other finish work. Their shallow depth and compact size make working in confined areas easier. Drainage holes allow liquid to empty so material dumps more easily.Tilt Buckets feature a full 45° of tilt in each direction, powered by two double-acting cylinders.
Products
Caterpillar

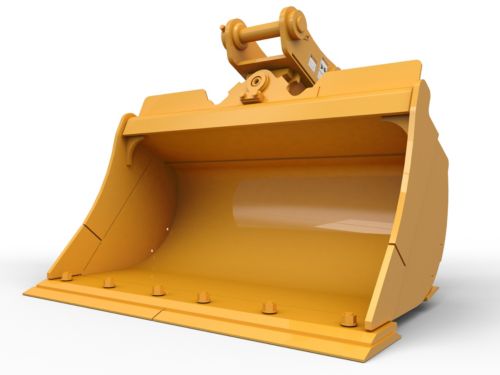

Ditch Cleaning Tilt Bucket 1200 mm (48 in): 509-9130
- Width
- 48 in / 1200 mm
- Capacity
- 0.63 yd³ / 0.48 m³
- Weight
- 1240 lb / 563 kg
Caterpillar
Ditch Cleaning Tilt Bucket 1500 mm (60 in): 509-9131
- Width
- 60 in / 1500 mm
- Capacity
- 0.75 yd³ / 0.57 m³
- Weight
- 1424 lb / 646 kg
Caterpillar

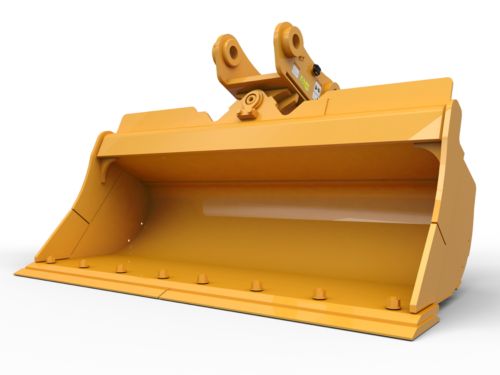

Ditch Cleaning Tilt Bucket 1500 mm (60 in): 510-6687
- Width
- 60 in / 1500 mm
- Capacity
- 0.84 yd³ / 0.64 m³
- Weight
- 1861 lb / 844 kg
Caterpillar
Ditch Cleaning Tilt Bucket 1800 mm (72 in): 510-6688
- Width
- 72 in / 1800 mm
- Capacity
- 1.02 yd³ / 0.78 m³
- Weight
- 2090 lb / 948 kg
Caterpillar

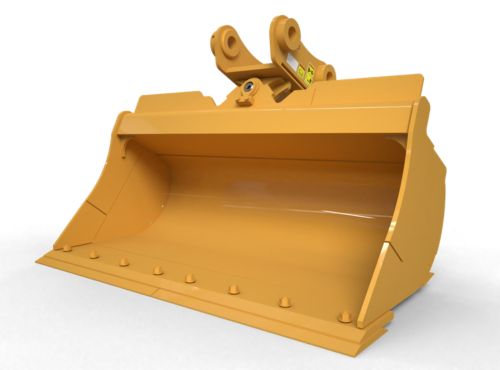

Ditch Cleaning Tilt Bucket 1500 mm (60 in): 511-5334
- Width
- 60 in / 1500 mm
- Capacity
- 1.18 yd³ / 0.9 m³
- Weight
- 2090 lb / 948 kg
Caterpillar
Ditch Cleaning Tilt Bucket 2000 mm (79 in): 516-2840
- Width
- 79 in / 2000 mm
- Capacity
- 1.12 yd³ / 0.86 m³
- Weight
- 2299 lb / 1043 kg
Caterpillar
Ditch Cleaning Tilt Bucket 1800 mm (72 in): 511-5335
- Width
- 72 in / 1800 mm
- Capacity
- 1.45 yd³ / 1.11 m³
- Weight
- 2344 lb / 1063 kg
Caterpillar
Ditch Cleaning Tilt Bucket 1800 mm (72 in): 511-5337
- Width
- 72 in / 1800 mm
- Capacity
- 1.83 yd³ / 1.4 m³
- Weight
- 2436 lb / 1105 kg
Caterpillar
Ditch Cleaning Tilt Bucket 2000 mm (79 in): 516-6671
- Width
- 79 in / 2000 mm
- Capacity
- 1.61 yd³ / 1.23 m³
- Weight
- 2496 lb / 1132 kg
Caterpillar
Ditch Cleaning Tilt Bucket 829 mm (72 in): 277-4044
- Width
- 94 in / 2400 mm
- Capacity
- 1.6 yd³ / 1.23 m³
- Weight
- 3514 lb / 1594 kg
