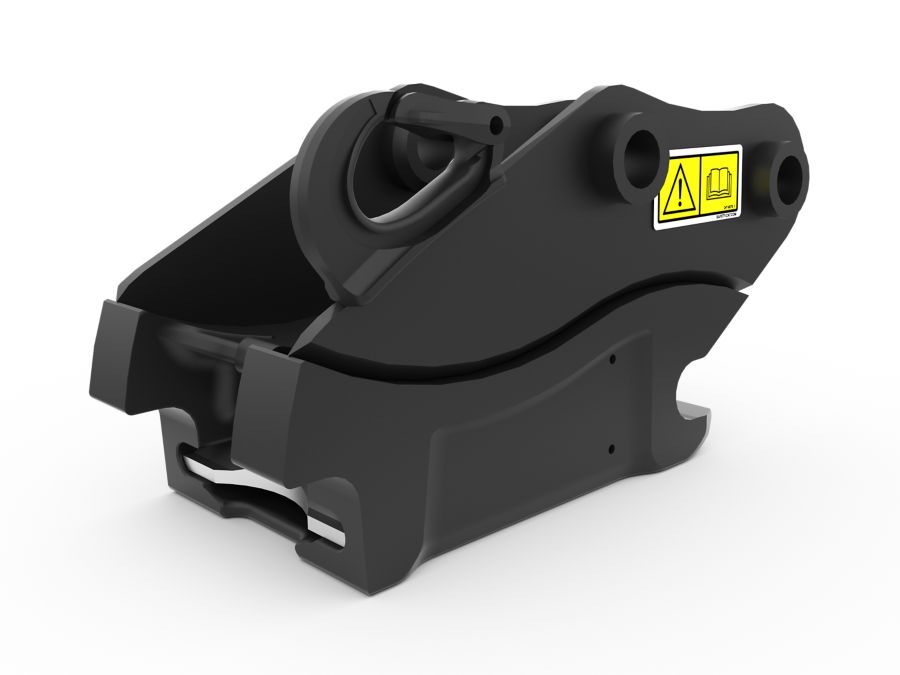

S40 Pin Grabber LCS 302.7

Cat

The S Type Coupler is a pin grabber style dedicated coupler. It ensures an exchangeability of tools within a fleet of machines with different platforms. Consistent tight fit to attachment, low offset, and reliability are the key features.

Cat® S Type Couplers for Mini Excavators are an optimal design for a dedicated quick coupler solution. Low offset, pin grabber ability, and a wedge type locking system ensures a tight fit, no attachment play during use. It also creates the solution to exchange work tools among different platforms and brands. In combination with the Tilt Rotate System that can be equipped with an S Type Coupler and the variety of different buckets offered, it provides a complete attachment solution for Mini Excavators. The coupler is designed with the highest safety standards and comes with a visible locking mechanism.

Gallery

Specifications

Specification	Value	Unit
Weight	89.1	lb
Lifting Hook Capacity	4409.2	lb
Width	9.5	in
Overall Length	18.5	in
Overall Height	9.9	in
Pin Diameter	1.6	in
Machine Class
Interface Type
Required Hydraulics
Maximum Operating Pressure	4351.1	psi
Coupler Type
