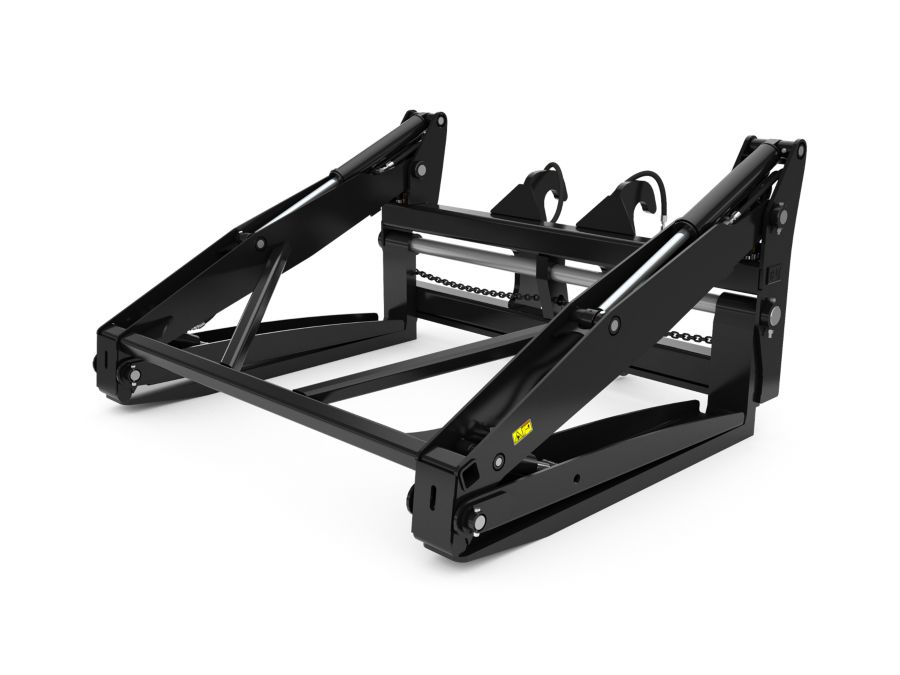

1829 mm (72 in), Fusion™ Coupler

1829 mm (72 in), Fusion™ Coupler
Cat
Request a Quote Find a Location
Cat® Pipe & Pole Forks are designed and built for use in oil and gas field drilling, pipe line construction and above-ground utilities work.
A Cat® Wheel Loader equipped with a Cat Pipe & Pole Fork is perfect for transporting, loading and unloading long lengths of pipe and poles — either single or multiple pieces. The upper arm of the Pipe & Pole Fork can be moved up and out of the way allowing the fork to work like a pallet fork handle other material.

Brochures and Spec Sheets

Gallery

1829 mm (72 in), Fusion™ Coupler 1829 mm (72 in), Fusion™ Coupler 1829 mm (72 in), Fusion™ Coupler 1829 mm (72 in), Fusion™ Coupler 1829 mm (72 in), Fusion™ Coupler 1829 mm (72 in), Fusion™ Coupler 1829 mm (72 in), Fusion™ Coupler

Specifications

Specification Value Unit
Width 100.7 in
Tine Length 72 in
Weight 4301.2 lb
Interface Type
Required Hydraulics
Carriage Height - Closed Clamp 52 in
Carriage Height - Open Clamp 123.7 in
Tine Spacing - Maximum Width 96 in
Tine Width 8 in
Tine Thickness 3 in
Load Capacity 7400.9 lb
