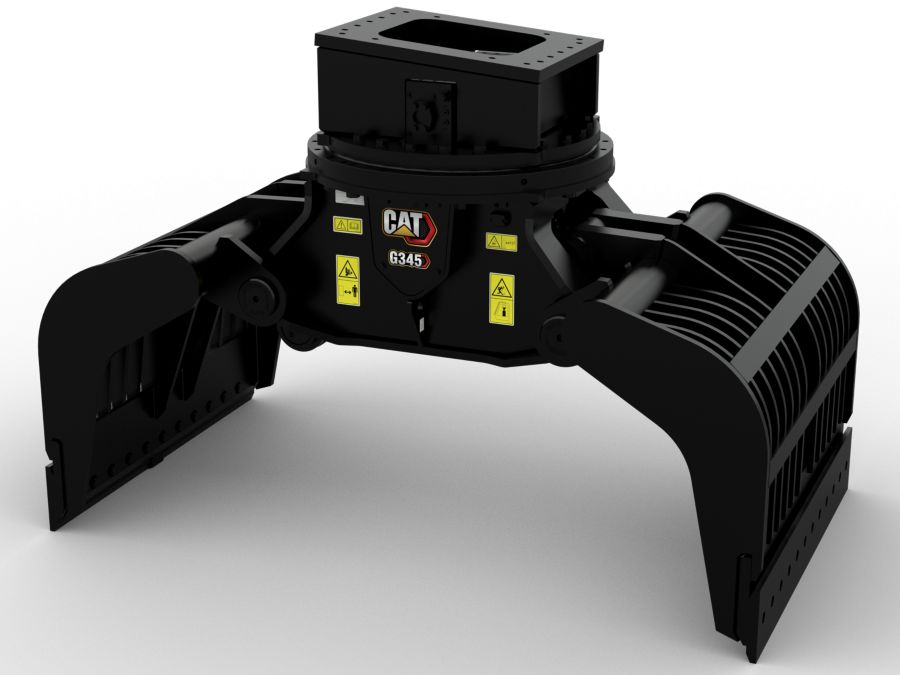

G345 Demolition & Sorting Grapple: 608-0756
Cat® Demolition & Sorting Grapples are designed for fast, productive material handling. Capable of high-volume, production loading and precise sorting, to enhance the productivity and efficiency of your operation. The grapples can handle anything from primary and secondary demolition to recycling to get the job done.
Cat® Demolition & Sorting Grapples are designed for fast, productive material handling. Capable of high-volume, production loading and precise sorting, to enhance the productivity and efficiency of your operation. The grapples can handle anything from primary and secondary demolition to recycling to get the job done.
Brochures and Spec Sheets
- Demolition & Sorting Grapples Key Features and Benefits
- Demolition & Sorting Grapples for Tracked Excavators Technical Specifications
- Demolition & Sorting Grapples for Wheeled Excavators Technical Specifications
- Demolition & Sorting Grapples for Material Handlers Technical Specifications
- Demolition & Sorting Grapple Product Brochure
Gallery
Specifications
| Specification | Value | Unit |
|---|---|---|
| Grapple Area | 1.31 | yd³ |
| Weight | 5337 | lb |
| Machine Class | ||
| Overall Width (Jaws Open) | 92.52 | in |
| Overall Width (Jaws Closed) | 62.44 | in |
| Overall Height (Jaws Open) | 50.63 | in |
| Overall Height (Jaws Closed) | 55.39 | in |
| Shell Type Options |
