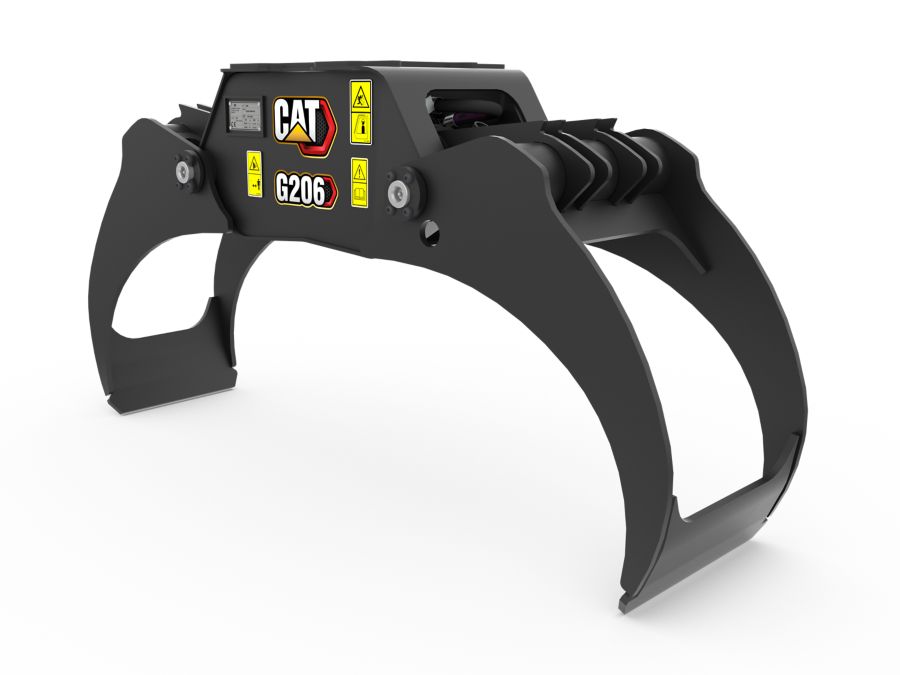

G206

G206
Cat
Request a Quote Find a Location
Works best in material handling applications where irregular surface materials are used.
Cat® Multi-Purpose Grapples are designed to allow maximum maneuverability with Cat Tiltrotators. The integrated bracket has a minimal offset to optimize the performance of thegrapplefunctionality. The Multi-Purpose Grapple works best in material handling applications where irregular surface materials are used, such as concrete pipe, curbs, trees, brush and other hardscape used in landscaping.

Brochures and Spec Sheets

Gallery

G206 G206 G206 G206 G206 G206 G206

Specifications

Specification Value Unit
Grapple Area 2.2 ft²
Weight 401.2 lb
Machine Class
Maximum Jaw Opening 50.8 in
Overall Width (Jaws Open) 56.9 in
Overall Width (Jaws Closed) 30.9 in
Overall Height (Jaws Open) 29.1 in
Overall Height (Jaws Closed) 20.2 in
Overall Depth 18.3 in
Minimum Grip Diameter 3.1 in
Wear Plate Thickness 0.5 in
Arm Depth (Outer) 15.9 in
Arm Depth (Inner) 13.8 in
Interface Type
Required Hydraulics
Edge Material
Maximum Closing Force 3259.7 ft·lbf
Maximum Load Rating 6613.9 lb
