Robust design, lifting capacity and efficiency put Caterpillar Orange Peel Grapples on top of the pile in scrap handling and recycling. The grapple's four hydraulic tines penetrate deep into scrap piles and grab tight to move the maximum possible material in every pass. This grapple provides superior productivity and efficiency for material handling operators.
Products
Caterpillar

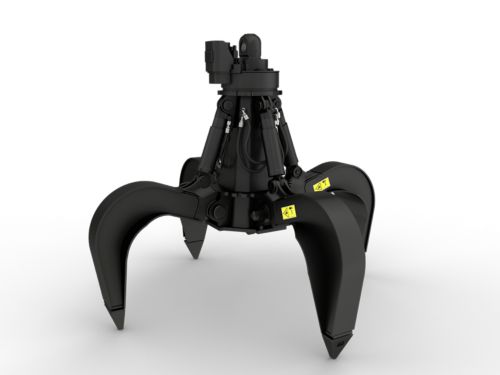

GSV420 4-Tine, 400-Liter Orange Peel Grapple
- Capacity
- 0.50 yd³ / 400 l
- Maximum Lift Capacity
- 17637 lb / 8000 kg
- Shell Type Options
- Semi-open
Caterpillar

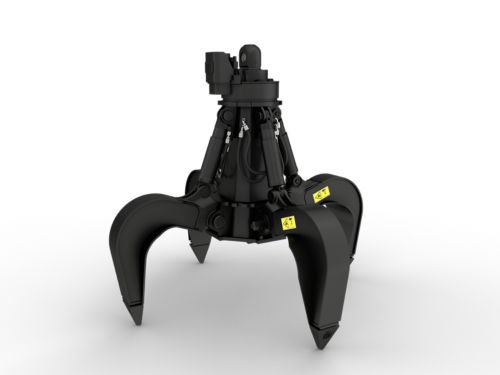

GSV420 4-Tine, 500-Liter Orange Peel Grapple
- Capacity
- 0.65 yd³ / 500 l
- Maximum Lift Capacity
- 17637 lb / 8000 kg
- Shell Type Options
- Semi-open
Caterpillar

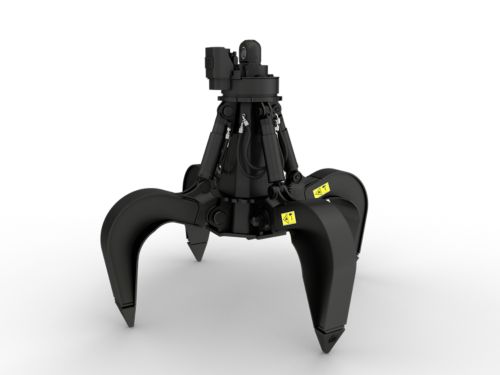

GSV420 4-Tine, 600-Liter Orange Peel Grapple
- Capacity
- 0.75 yd³ / 600 l
- Maximum Lift Capacity
- 17637 lb / 8000 kg
- Shell Type Options
- Semi-open
Caterpillar
GSV420 4-Tine, 750-Liter Orange Peel Grapple
- Capacity
- 1.00 yd³ / 750 l
- Maximum Lift Capacity
- 17637 lb / 8000 kg
- Shell Type Options
- Semi-open
Caterpillar
GSV420 4-Tine, 1250-Liter Orange Peel Grapple
- Capacity
- 1.63 yd³ / 1250 l
- Maximum Lift Capacity
- 17637 lb / 8000 kg
- Shell Type Options
- Semi-open
Caterpillar
GSV425 4-Tine, 600-Liter Orange Peel Grapple
- Capacity
- 0.75 yd³ / 600 l
- Maximum Lift Capacity
- 22046 lb / 10000 kg
- Shell Type Options
- Semi-open
Caterpillar
GSV425 4-Tine, 750-Liter Orange Peel Grapple
- Capacity
- 1.00 yd³ / 750 l
- Maximum Lift Capacity
- 22046 lb / 10000 kg
- Shell Type Options
- Semi-open
Caterpillar

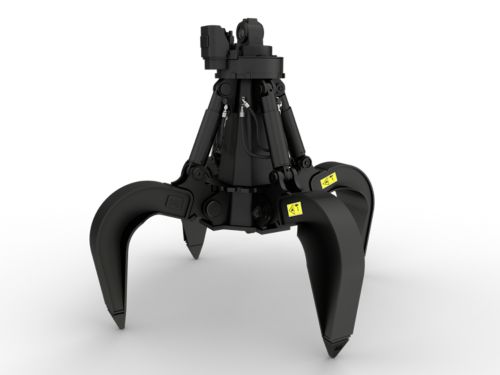

GSV425 4-Tine, 950-Liter Orange Peel Grapple
- Capacity
- 1.25 yd³ / 950 l
- Maximum Lift Capacity
- 22046 lb / 10000 kg
- Shell Type Options
- Semi-open
Caterpillar
GSV425 4-Tine,1150-Liter Orange Peel Grapple
- Capacity
- 1.50 yd³ / 1150 l
- Maximum Lift Capacity
- 22046 lb / 10000 kg
- Shell Type Options
- Semi-open
Caterpillar
GSV425 4-Tine,1550-Liter Orange Peel Grapple
- Capacity
- 2.00 yd³ / 1550 l
- Maximum Lift Capacity
- 22046 lb / 10000 kg
- Shell Type Options
- Semi-open
Caterpillar

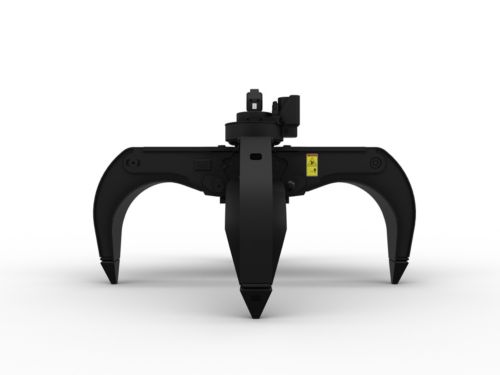

GSH420 4-Tine, 500-Liter Orange Peel Grapple
- Capacity
- 0.65 yd³ / 500 l
- Maximum Lift Capacity
- 17637 lb / 8000 kg
- Shell Type Options
- Semi-open
Caterpillar
GSH420 4-Tine, 600-Liter Orange Peel Grapple
- Capacity
- 0.75 yd³ / 600 l
- Maximum Lift Capacity
- 17637 lb / 8000 kg
- Shell Type Options
- Semi-open
Caterpillar
GSH420 4-Tine, 750-Liter Orange Peel Grapple
- Capacity
- 1.00 yd³ / 750 l
- Maximum Lift Capacity
- 17637 lb / 8000 kg
- Shell Type Options
- Semi-open
Caterpillar

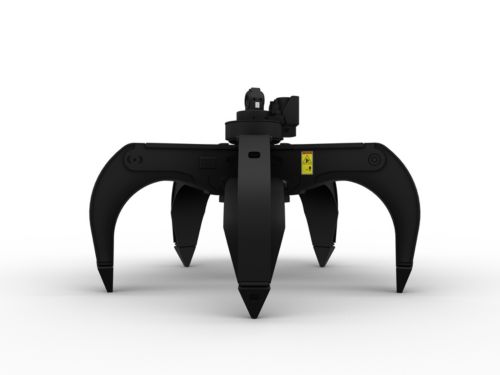

GSH520 5-Tine, 500-Liter Orange Peel Grapple
- Capacity
- 0.65 yd³ / 500 l
- Maximum Lift Capacity
- 17637 lb / 8000 kg
- Shell Type Options
- Semi-open, Closed
Caterpillar
GSH520 5-Tine, 600-Liter Orange Peel Grapple
- Capacity
- 0.75 yd³ / 600 l
- Maximum Lift Capacity
- 17637 lb / 8000 kg
- Shell Type Options
- Semi-open, Closed
Caterpillar
GSH520 5-Tine, 750-Liter Orange Peel Grapple
- Capacity
- 1.00 yd³ / 750 l
- Maximum Lift Capacity
- 17637 lb / 8000 kg
- Shell Type Options
- Semi-open, Closed
Caterpillar

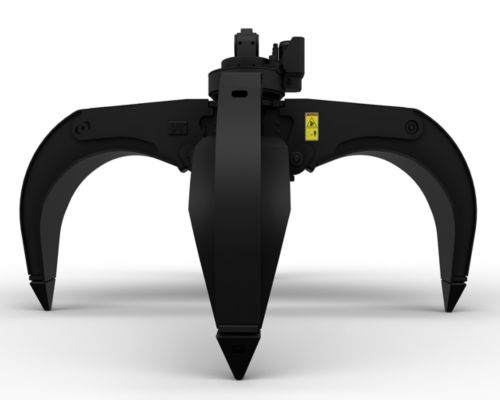

GSH425 4-Tine, 750-Liter Orange Peel Grapple
- Capacity
- 1.00 yd³ / 750 l
- Maximum Lift Capacity
- 22046 lb / 10000 kg
- Shell Type Options
- Semi-open
Caterpillar
GSH425 4-Tine, 950-Liter Orange Peel Grapple
- Capacity
- 1.25 yd³ / 950 l
- Maximum Lift Capacity
- 22046 lb / 10000 kg
- Shell Type Options
- Semi-open
Caterpillar

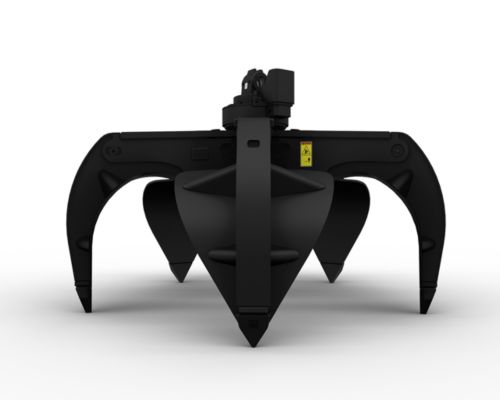

GSH525 5-Tine, 750-Liter Orange Peel Grapple
- Capacity
- 1.00 yd³ / 750 l
- Maximum Lift Capacity
- 22046 lb / 10000 kg
- Shell Type Options
- Semi-open, Closed
Caterpillar
GSH525 5-Tine, 950-Liter Orange Peel Grapple
- Capacity
- 1.25 yd³ / 950 l
- Maximum Lift Capacity
- 22046 lb / 10000 kg
- Shell Type Options
- Semi-open, Closed
Caterpillar

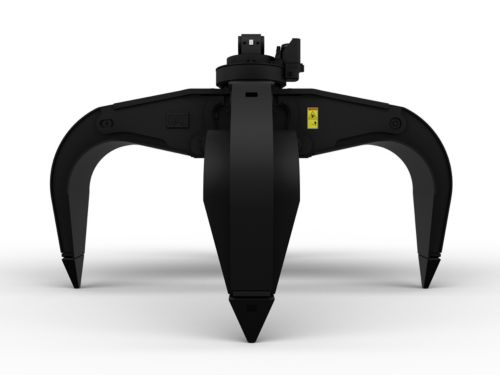

GSH455 4-Tine, 1000-Liter Orange Peel Grapple
- Capacity
- 1.50 yd³ / 1000 l
- Maximum Lift Capacity
- 33069 lb / 15000 kg
- Shell Type Options
- Semi-open
Caterpillar
GSH455 4-Tine, 1500-Liter Orange Peel Grapple
- Capacity
- 2.00 yd³ / 1500 l
- Maximum Lift Capacity
- 33069 lb / 15000 kg
- Shell Type Options
- Semi-open
Caterpillar
GSH455 4-Tine, 2000-Liter Orange Peel Grapple
- Capacity
- 2.50 yd³ / 2000 l
- Maximum Lift Capacity
- 33069 lb / 15000 kg
- Shell Type Options
- Semi-open
Caterpillar

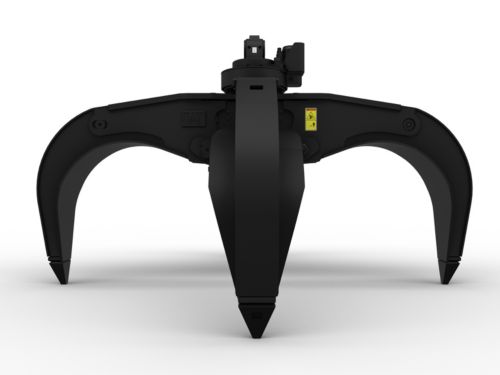

GSH440 4-Tine, 1150-Liter Orange Peel Grapple
- Capacity
- 1.50 yd³ / 1150 l
- Maximum Lift Capacity
- 22046 lb / 10000 kg
- Shell Type Options
- Semi-open
Caterpillar
GSH440 4-Tine, 1550-Liter Orange Peel Grapple
- Capacity
- 2.00 yd³ / 1550 l
- Maximum Lift Capacity
- 22046 lb / 10000 kg
- Shell Type Options
- Semi-open
