TG-315

Caterpillar

Request a Quote Find a Location

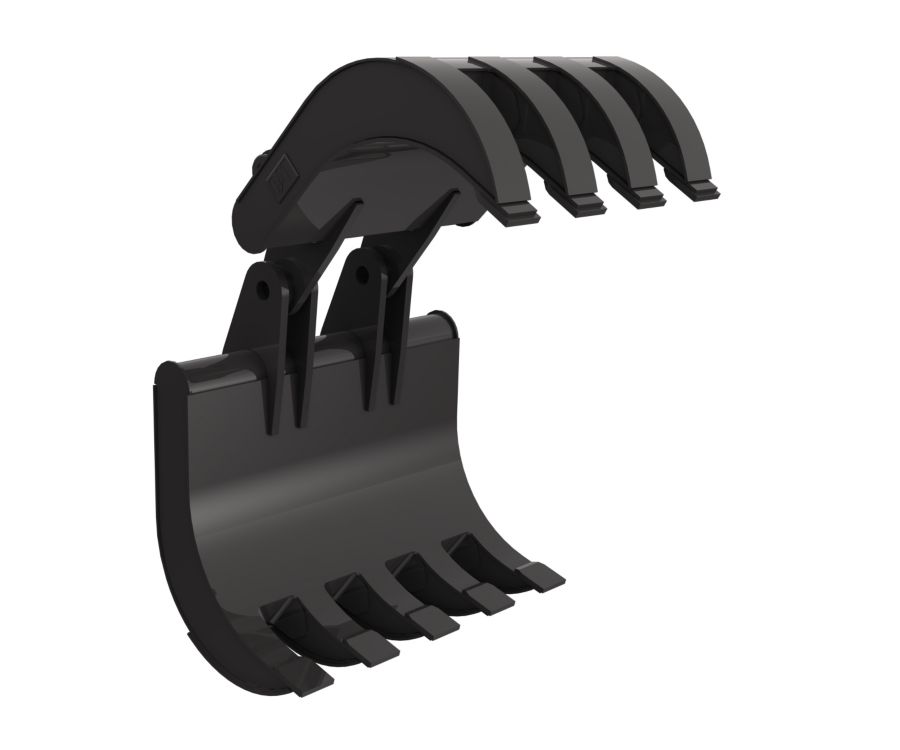

Pin on trash grapple, four tines over five, for 315B or 315C hydraulic excavator with 315 linkage. 7CW.

Pin on trash grapple, four tines over five, for 315B or 315C hydraulic excavator with 315 linkage.

Brochures and Spec Sheets

Specification	Value	Unit
Rated Capacity	2.4	yd³
Weight	2000.0	lb
Upper Jaw Width	44.0	in
Lower Jaw Width	58.0	in
Maximum Jaw Opening	87.0	in
Outside Jaw Dimension - Closed	26.0	in
Outside Jaw Dimension - Open	88.0	in
Tip Radius	46.0	in
Jaw Depth	10.0	in
Tip Thickness	0.51	in
Wear Plate Thickness	0.51	in
Wrapper Thickness	0.39	in
