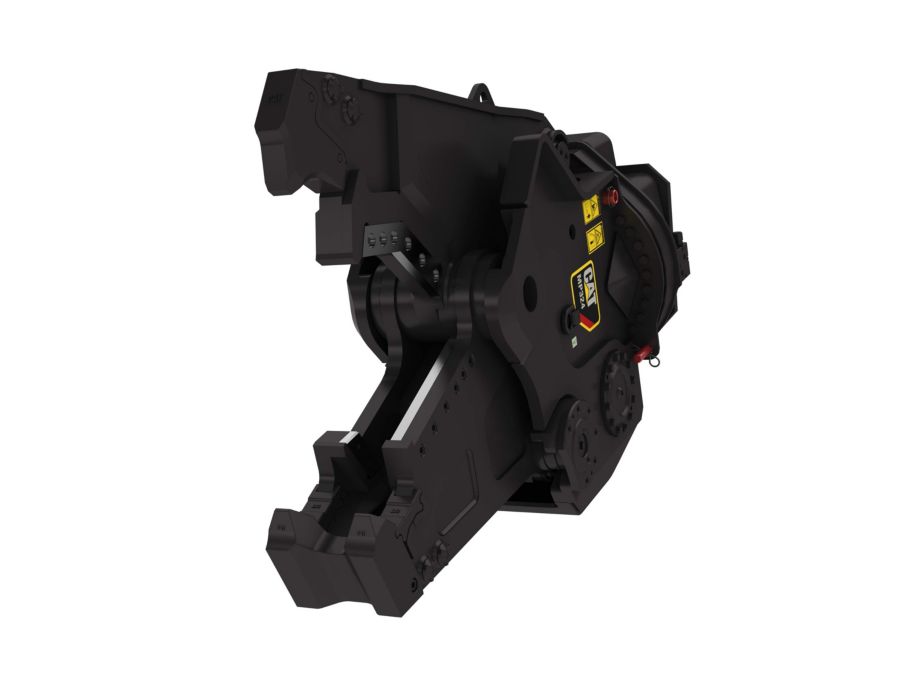

MP324 Concrete Cutter Jaw

MP324 Concrete Cutter Jaw
Caterpillar
Request a Quote Find a Location
Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.
Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.

Brochures and Spec Sheets

Gallery

MP324 Concrete Cutter Jaw MP324 Concrete Cutter Jaw MP324 Concrete Cutter Jaw MP324 Concrete Cutter Jaw MP324 Concrete Cutter Jaw

Specifications

Specification Value Unit
Cycle Time - Open 1.8 s
Cycle Time - Close 1.2 s
Crushing Force - Primary Cutter 406.3 Sh Ton
Crushing Force - Cutter Tip 187.5 Sh Ton
Crushing Force - Tooth Tip 127.3 Sh Ton
Jaw Circuit - Max. Oil Pressure 4786 psi
Jaw Circuit - Max. Oil Flow 59.4 gpm
Rotation Circuit - Max. Oil Pressure 2031 psi
Rotation Circuit - Max. Oil Flow 40 L/min
Jaw Depth 753 mm
Cutter Length 439 mm
Jaw Opening - Maximum 826 mm
Jaw Width - Fixed 13.5 in
Jaw Width - Moveable 4.8 in
Weight - Housing, Jaw and Bracket 5915.0 lb
Weight - Jaw Only 2288.4 lb
Excavator Minimum
Excavator Maximum
