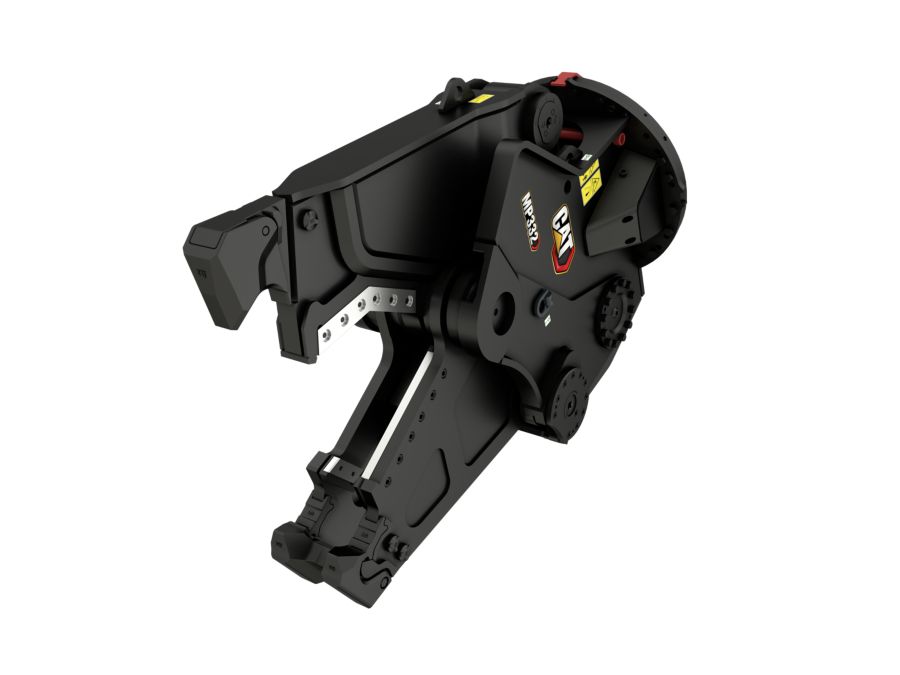

MP332 Concrete Cutter Jaw

MP332 Concrete Cutter Jaw
Caterpillar
Request a Quote Find a Location
Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.
Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.

Brochures and Spec Sheets

Gallery

MP332 Concrete Cutter Jaw MP332 Concrete Cutter Jaw MP332 Concrete Cutter Jaw MP332 Concrete Cutter Jaw MP332 Concrete Cutter Jaw

Specifications

Specification Value Unit
Cycle Time - Open 1.9 s
Cycle Time - Close 1.3 s
Crushing Force - Primary Cutter 478.6 Sh Ton
Crushing Force - Cutter Tip 204.1 Sh Ton
Crushing Force - Tooth Tip 153.7 Sh Ton
Jaw Circuit - Max. Oil Pressure 4786 psi
Jaw Circuit - Max. Oil Flow 280 L/min
Rotation Circuit - Max. Oil Pressure 16000 kPa
Rotation Circuit - Max. Oil Flow 40 L/min
Jaw Depth 34.2 in
Cutter Length 496 mm
Jaw Opening - Maximum 36.5 in
Jaw Width - Fixed 353 mm
Jaw Width - Moveable 140 mm
Weight - Housing, Jaw and Bracket 3221 kg
Weight - Jaw Only 2976.2 lb
Excavator Minimum
Excavator Maximum
