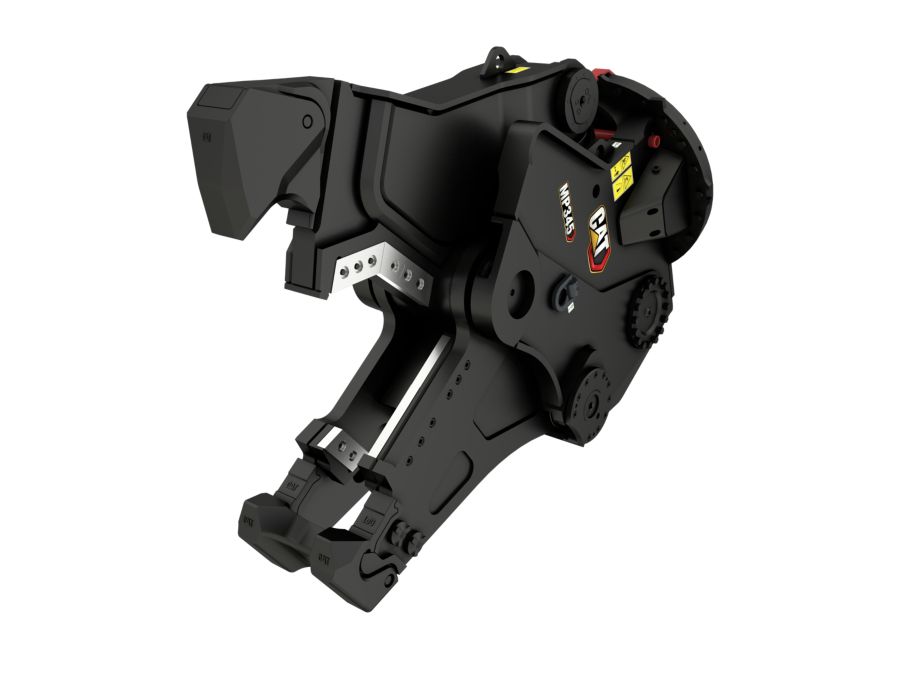

MP345 Concrete Cutter Jaw

MP345 Concrete Cutter Jaw
Caterpillar
Request a Quote Find a Location
Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.
Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.

Brochures and Spec Sheets

Gallery

MP345 Concrete Cutter Jaw MP345 Concrete Cutter Jaw MP345 Concrete Cutter Jaw MP345 Concrete Cutter Jaw MP345 Concrete Cutter Jaw

Specifications

Specification Value Unit
Cycle Time - Open 1.9 s
Cycle Time - Close 1.4 s
Crushing Force - Primary Cutter 573.5 Sh Ton
Crushing Force - Cutter Tip 267.7 Sh Ton
Crushing Force - Tooth Tip 187.7 Sh Ton
Jaw Circuit - Max. Oil Pressure 33000 kPa
Jaw Circuit - Max. Oil Flow 360 L/min
Rotation Circuit - Max. Oil Pressure 2321 psi
Rotation Circuit - Max. Oil Flow 50 L/min
Jaw Depth 35.9 in
Cutter Length 19.7 in
Jaw Opening - Maximum 40.3 in
Jaw Width - Fixed 509 mm
Jaw Width - Moveable 7.4 in
Weight - Housing, Jaw and Bracket 4316 kg
Weight - Jaw Only 1971 kg
Excavator Minimum
Excavator Maximum
