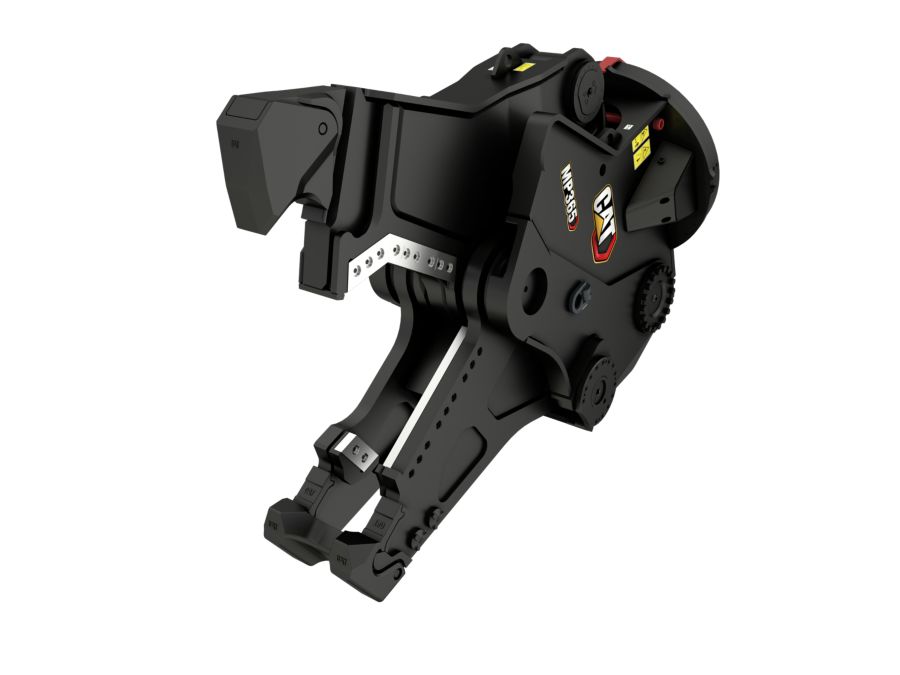

MP365 Concrete Cutter Jaw

MP365 Concrete Cutter Jaw
Caterpillar
Request a Quote Find a Location
Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.
Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.

Brochures and Spec Sheets

Gallery

MP365 Concrete Cutter Jaw MP365 Concrete Cutter Jaw MP365 Concrete Cutter Jaw MP365 Concrete Cutter Jaw MP365 Concrete Cutter Jaw

Specifications

Specification Value Unit
Cycle Time - Open 2.1 s
Cycle Time - Close 1.6 s
Crushing Force - Primary Cutter 665.2 Sh Ton
Crushing Force - Cutter Tip 308.8 Sh Ton
Crushing Force - Tooth Tip 226.7 Sh Ton
Jaw Circuit - Max. Oil Pressure 33000 kPa
Jaw Circuit - Max. Oil Flow 118.9 gpm
Rotation Circuit - Max. Oil Pressure 2321 psi
Rotation Circuit - Max. Oil Flow 50 L/min
Jaw Depth 41.4 in
Cutter Length 634 mm
Jaw Opening - Maximum 48.5 in
Jaw Width - Fixed 20.0 in
Jaw Width - Moveable 187 mm
Weight - Housing, Jaw and Bracket 12464.9 lb
Weight - Jaw Only 5670.3 lb
Excavator Minimum
Excavator Maximum
