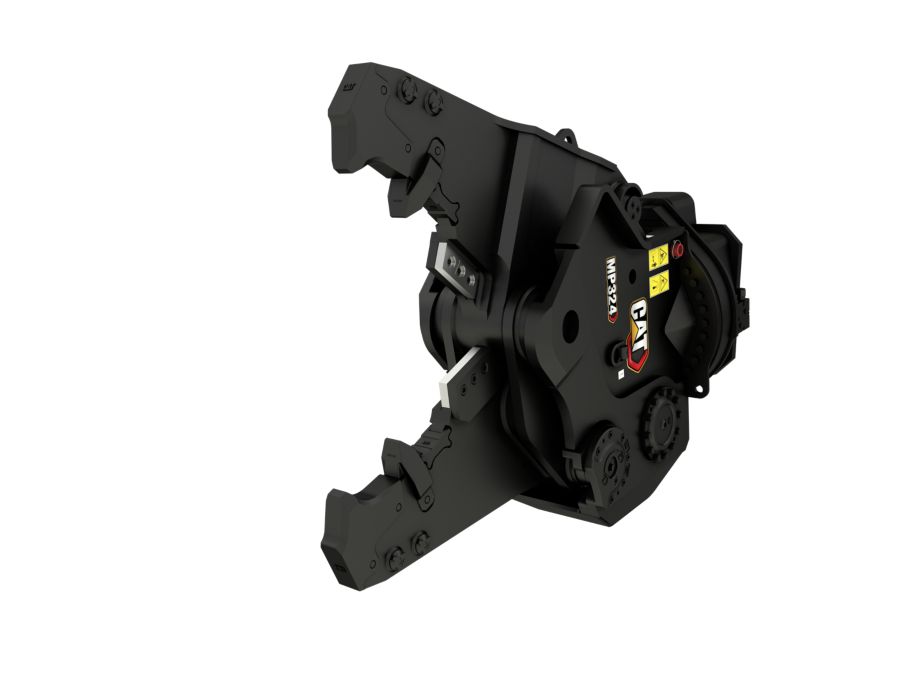

MP324 Demolition Jaw

MP324 Demolition Jaw
Caterpillar
Request a Quote Find a Location
Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.
Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.

Brochures and Spec Sheets

Gallery

MP324 Demolition Jaw MP324 Demolition Jaw MP324 Demolition Jaw MP324 Demolition Jaw MP324 Demolition Jaw MP324 Demolition Jaw MP324 Demolition Jaw

Specifications

Specification Value Unit
Cycle Time - Open 1.8 s
Cycle Time - Close 1.2 s
Crushing Force - Primary Cutter 423.4 Sh Ton
Crushing Force - Cutter Tip 371.8 Sh Ton
Crushing Force - Tooth Tip 112.6 Sh Ton
Jaw Circuit - Max. Oil Pressure 33000 bar
Jaw Circuit - Max. Oil Flow 59.4 gpm
Rotation Circuit - Max. Oil Pressure 14000 bar
Rotation Circuit - Max. Oil Flow 40 L/min
Jaw Depth 29.8 in
Cutter Length 7.5 in
Jaw Opening - Maximum 35.6 in
Jaw Width - Fixed 5.2 in
Jaw Width - Moveable 5.2 in
Length 81.9 in
Height 62.7 in
Width 31.2 in
Excavator Minimum
Excavator Maximum
