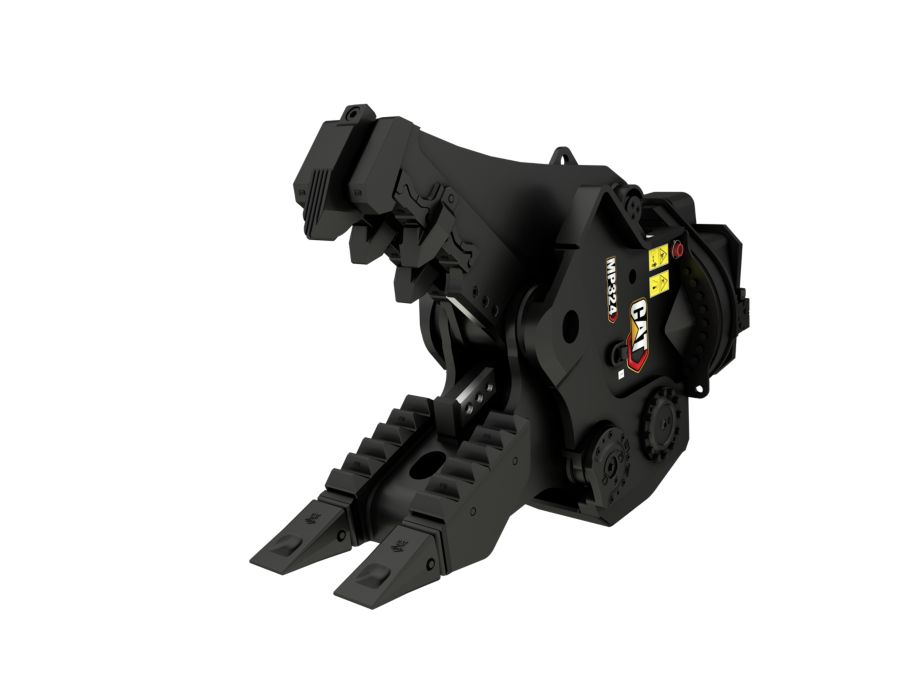

MP324 Pulverizer Jaw

MP324 Pulverizer Jaw
Caterpillar
Request a Quote Find a Location
Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.
Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.

Brochures and Spec Sheets

Gallery

MP324 Pulverizer Jaw MP324 Pulverizer Jaw MP324 Pulverizer Jaw MP324 Pulverizer Jaw MP324 Pulverizer Jaw MP324 Pulverizer Jaw MP324 Pulverizer Jaw MP324 Pulverizer Jaw

Specifications

Specification Value Unit
Cycle Time - Open 1.8 s
Cycle Time - Close 1.2 s
Crushing Force - Primary Cutter 418.9 Sh Ton
Crushing Force - Cutter Tip 368.3 Sh Ton
Crushing Force - Tooth Tip 109.1 Sh Ton
Jaw Circuit - Max. Oil Pressure 4786 psi
Jaw Circuit - Max. Oil Flow 59.4 gpm
Rotation Circuit - Max. Oil Pressure 2031 psi
Rotation Circuit - Max. Oil Flow 10.6 gpm
Jaw Depth 30.1 in
Cutter Length 7.9 in
Jaw Opening - Maximum 38.0 in
Jaw Width - Fixed 20.4 in
Jaw Width - Moveable 13.3 in
Length 85.9 in
Height 57.7 in
Width 31.2 in
Weight - Housing, Jaw and Bracket 6263.3 lb
Weight - Jaw Only 2636.7 lb
Excavator Minimum
Excavator Maximum
