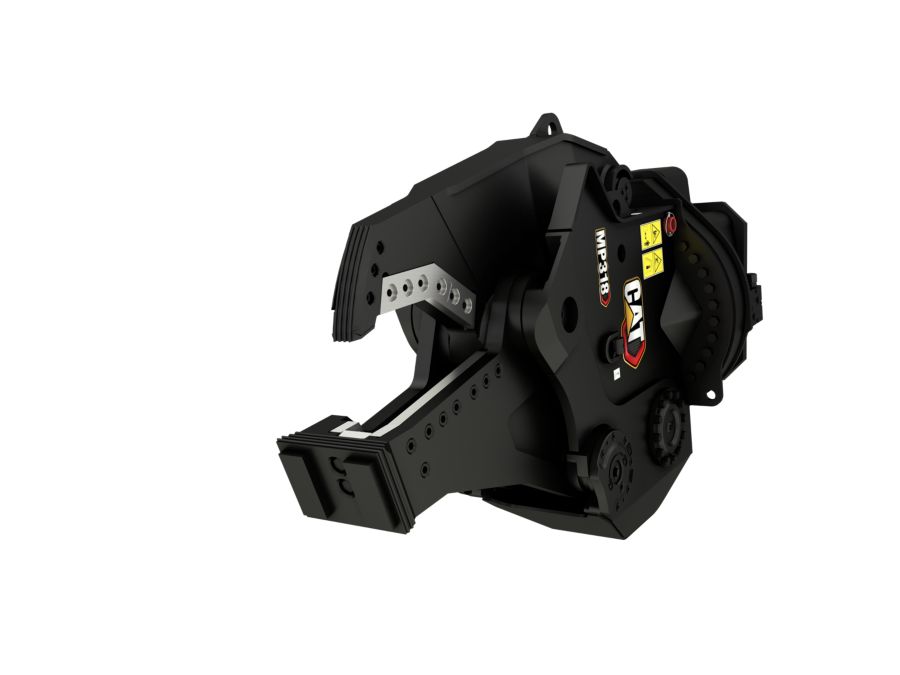

MP318 Shear Jaw

MP318 Shear Jaw
Caterpillar
Request a Quote Find a Location
Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.
Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.

Brochures and Spec Sheets

Gallery

MP318 Shear Jaw MP318 Shear Jaw MP318 Shear Jaw MP318 Shear Jaw MP318 Shear Jaw MP318 Shear Jaw MP318 Shear Jaw

Specifications

Specification Value Unit
Cycle Time - Open 1.6 s
Cycle Time - Close 1.0 s
Cutting Force - Blade Throat 450.9 Sh Ton
Cutting Force - Blade Center 205.4 Sh Ton
Cutting Force - Blade Tip 113.6 Sh Ton
Jaw Circuit - Max. Oil Pressure 4786 psi
Jaw Circuit - Max. Oil Flow 59.4 gpm
Rotation Circuit - Max. Oil Pressure 2031 psi
Rotation Circuit - Max. Oil Flow 10.6 gpm
Jaw Depth 19.3 in
Cutter Length 15.0 in
Jaw Opening - Maximum 12.7 in
Jaw Width - Fixed 12.3 in
Jaw Width - Moveable 3.7 in
Width 31.2 in
Length 74.7 in
Height 51.1 in
Weight - Housing, Jaw and Bracket 4131.5 lb
Weight - Jaw Only 1461.7 lb
Excavator Minimum
Excavator Maximum
