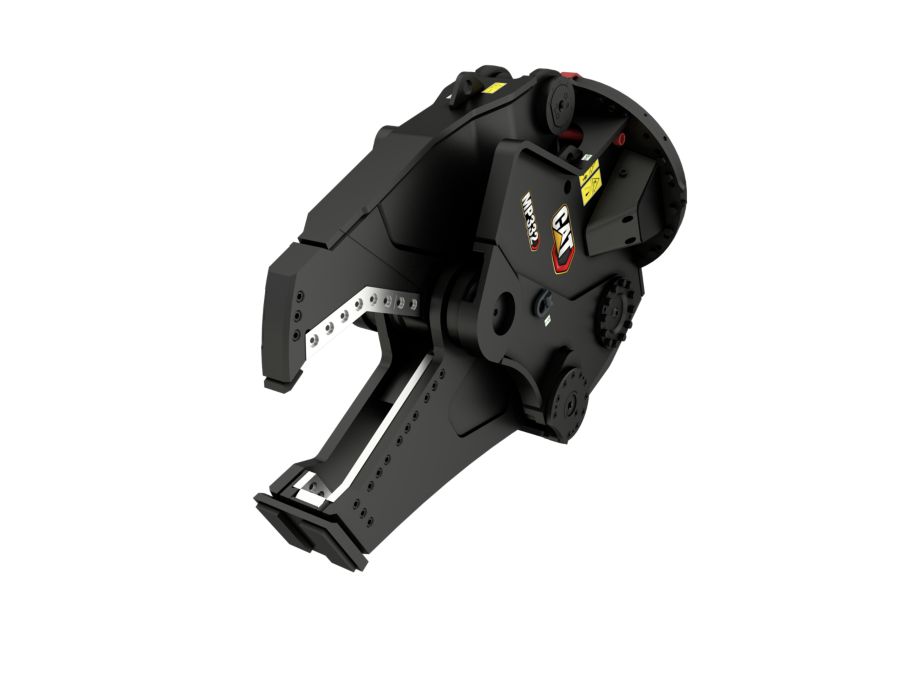

MP332 Shear Jaw

MP332 Shear Jaw
Caterpillar
Request a Quote Find a Location
Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.
Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.

Brochures and Spec Sheets

Gallery

MP332 Shear Jaw MP332 Shear Jaw MP332 Shear Jaw MP332 Shear Jaw MP332 Shear Jaw MP332 Shear Jaw MP332 Shear Jaw

Specifications

Specification Value Unit
Cycle Time - Open 1.9 s
Cycle Time - Close 1.3 s
Cutting Force - Blade Throat 886.9 Sh Ton
Cutting Force - Blade Center 351.1 Sh Ton
Cutting Force - Blade Tip 185.7 Sh Ton
Jaw Circuit - Max. Oil Pressure 4786 psi
Jaw Circuit - Max. Oil Flow 74.0 gpm
Rotation Circuit - Max. Oil Pressure 2321 psi
Rotation Circuit - Max. Oil Flow 10.6 gpm
Jaw Depth 26.7 in
Cutter Length 22.5 in
Jaw Opening - Maximum 18.5 in
Jaw Width - Fixed 13.0 in
Jaw Width - Moveable 4.5 in
Width 39.6 in
Length 84.5 in
Height 63.6 in
Weight - Housing, Jaw and Bracket 7023.9 lb
Weight - Jaw Only 2899.1 lb
Excavator Minimum
Excavator Maximum
