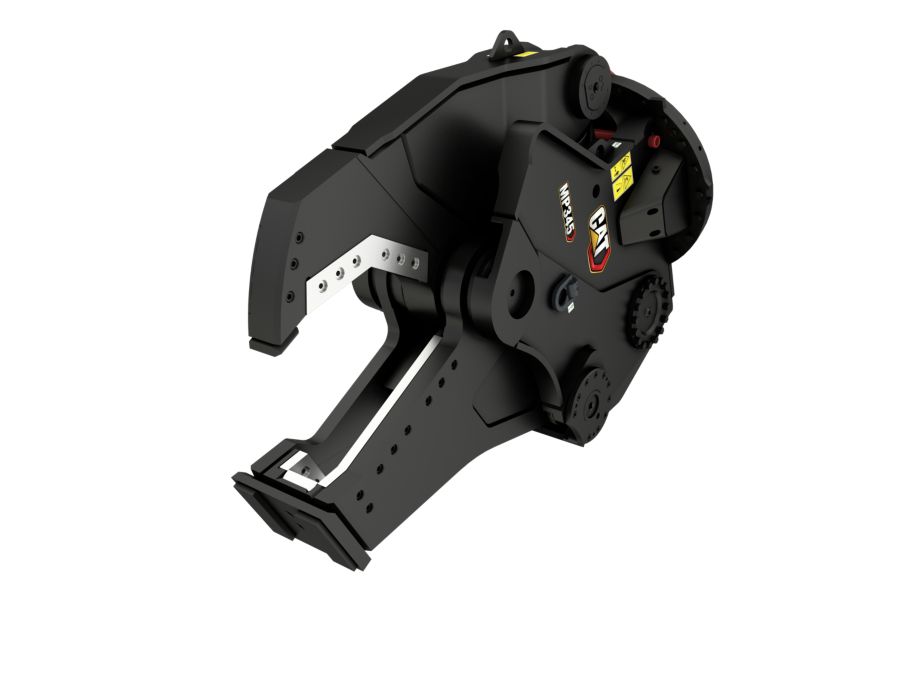

MP345 Shear Jaw

MP345 Shear Jaw
Caterpillar
Request a Quote Find a Location
Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.
Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.

Brochures and Spec Sheets

Gallery

MP345 Shear Jaw MP345 Shear Jaw MP345 Shear Jaw MP345 Shear Jaw MP345 Shear Jaw MP345 Shear Jaw MP345 Shear Jaw

Specifications

Specification Value Unit
Cycle Time - Open 1.9 s
Cycle Time - Close 1.4 s
Cutting Force - Blade Throat 951.3 Sh Ton
Cutting Force - Blade Center 408.8 Sh Ton
Cutting Force - Blade Tip 218.6 Sh Ton
Jaw Circuit - Max. Oil Pressure 4786 psi
Jaw Circuit - Max. Oil Flow 95.1 gpm
Rotation Circuit - Max. Oil Pressure 2321 psi
Rotation Circuit - Max. Oil Flow 13.2 gpm
Jaw Depth 29.3 in
Cutter Length 22.8 in
Jaw Opening - Maximum 19.7 in
Jaw Width - Fixed 17.1 in
Jaw Width - Moveable 5.7 in
Width 39.6 in
Length 90.4 in
Height 73.4 in
Weight - Housing, Jaw and Bracket 9524.0 lb
Weight - Jaw Only 4354.1 lb
Excavator Minimum
Excavator Maximum
