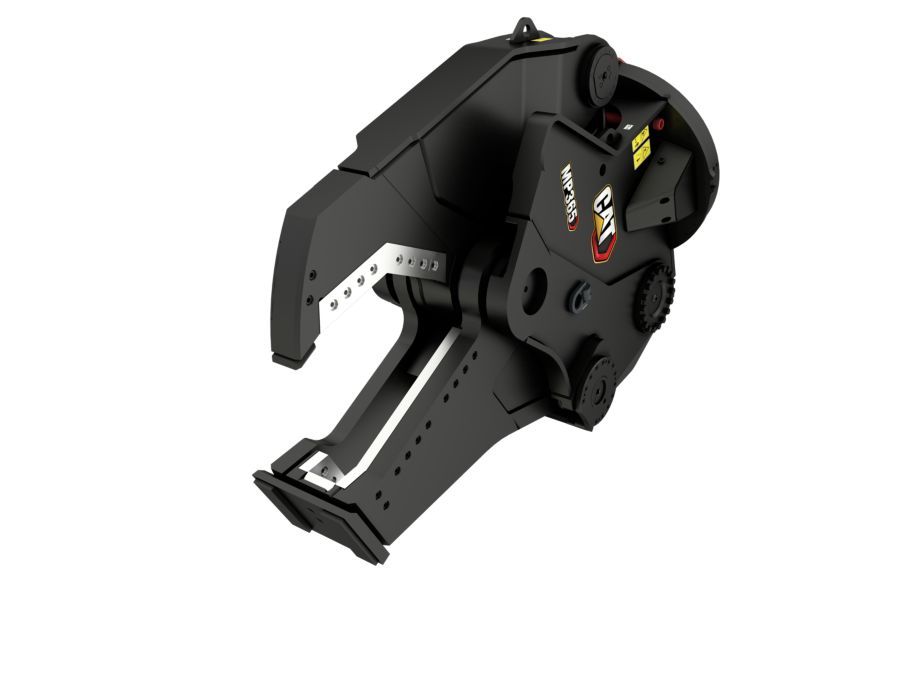

MP365 Shear Jaw

MP365 Shear Jaw
Caterpillar
Request a Quote Find a Location
Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.
Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.

Brochures and Spec Sheets

Gallery

MP365 Shear Jaw MP365 Shear Jaw MP365 Shear Jaw MP365 Shear Jaw MP365 Shear Jaw MP365 Shear Jaw MP365 Shear Jaw

Specifications

Specification Value Unit
Cycle Time - Open 2.1 s
Cycle Time - Close 1.6 s
Cutting Force - Blade Throat 1269.6 Sh Ton
Cutting Force - Blade Center 489.7 Sh Ton
Cutting Force - Blade Tip 263.2 Sh Ton
Jaw Circuit - Max. Oil Pressure 4786 psi
Jaw Circuit - Max. Oil Flow 118.9 gpm
Rotation Circuit - Max. Oil Pressure 2321 psi
Rotation Circuit - Max. Oil Flow 13.2 gpm
Jaw Depth 33.9 in
Cutter Length 28.1 in
Jaw Opening - Maximum 21.7 in
Jaw Width - Fixed 19.3 in
Jaw Width - Moveable 5.7 in
Width 43.3 in
Length 2597 in
Height 84.0 in
Weight - Housing, Jaw and Bracket 12897.0 lb
Weight - Jaw Only 6102.4 lb
Excavator Minimum
Excavator Maximum
