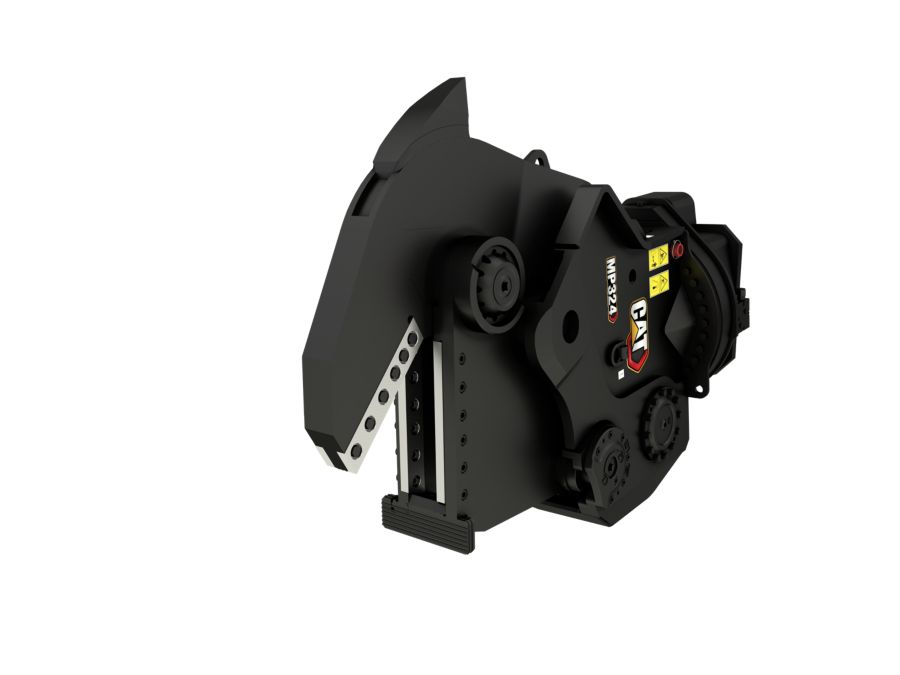

MP324 Tank Shear

MP324 Tank Shear
Caterpillar
Request a Quote Find a Location
Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.
Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.

Brochures and Spec Sheets

Gallery

MP324 Tank Shear MP324 Tank Shear MP324 Tank Shear MP324 Tank Shear MP324 Tank Shear MP324 Tank Shear MP324 Tank Shear MP324 Tank Shear

Specifications

Specification Value Unit
Cycle Time - Open 1.8 s
Cycle Time - Close 1.2 s
Cutting Force - Blade Throat 488.3 Sh Ton
Cutting Force - Blade Center 212.9 Sh Ton
Cutting Force - Blade Tip 174.2 Sh Ton
Jaw Circuit - Max. Oil Pressure 4786 psi
Jaw Circuit - Max. Oil Flow 59.4 gpm
Rotation Circuit - Max. Oil Pressure 2031 psi
Rotation Circuit - Max. Oil Flow 10.6 gpm
Jaw Depth 19.3 in
Cutter Length 17.3 in
Jaw Opening - Maximum 13.7 in
Jaw Width - Fixed 11.3 in
Jaw Width - Moveable 4.7 in
Width 31.2 in
Length 83.8 in
Height 61.9 in
Weight - Housing, Jaw and Bracket 6113.4 lb
Weight - Jaw Only 2486.8 lb
Excavator Minimum
Excavator Maximum
