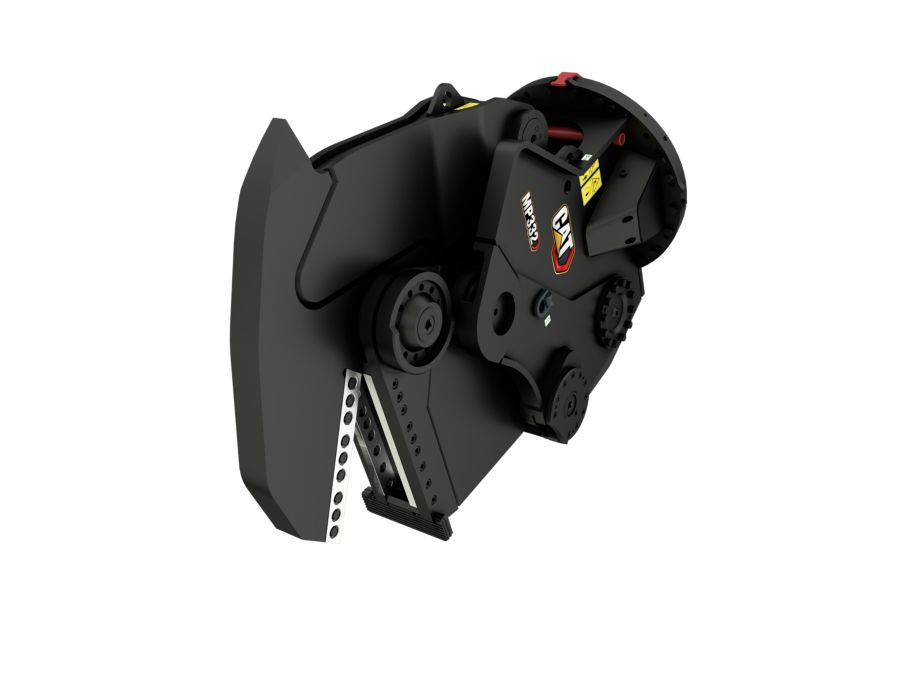

MP332 Tank Shear

MP332 Tank Shear
Caterpillar
Request a Quote Find a Location
Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.
Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.

Brochures and Spec Sheets

Gallery

MP332 Tank Shear MP332 Tank Shear MP332 Tank Shear MP332 Tank Shear MP332 Tank Shear MP332 Tank Shear MP332 Tank Shear MP332 Tank Shear

Specifications

Specification Value Unit
Cycle Time - Open 1.9 s
Cycle Time - Close 1.3 s
Cutting Force - Blade Tip 792.2 Sh Ton
Cutting Force - Blade Center 342.3 Sh Ton
Cutting Force - Blade Throat 217.4 Sh Ton
Jaw Circuit - Max. Oil Pressure 4786 psi
Jaw Circuit - Max. Oil Flow 74.0 gpm
Rotation Circuit - Max. Oil Pressure 2321 psi
Rotation Circuit - Max. Oil Flow 10.6 gpm
Jaw Depth 20.5 in
Cutter Length 23.6 in
Jaw Opening - Maximum 15.1 in
Jaw Width - Fixed 15.4 in
Jaw Width - Moveable 4.7 in
Width 39.6 in
Length 86.6 in
Height 77.5 in
Weight - Housing, Jaw and Bracket 8150.5 lb
Weight - Jaw Only 4025.6 lb
Excavator Minimum
Excavator Maximum
