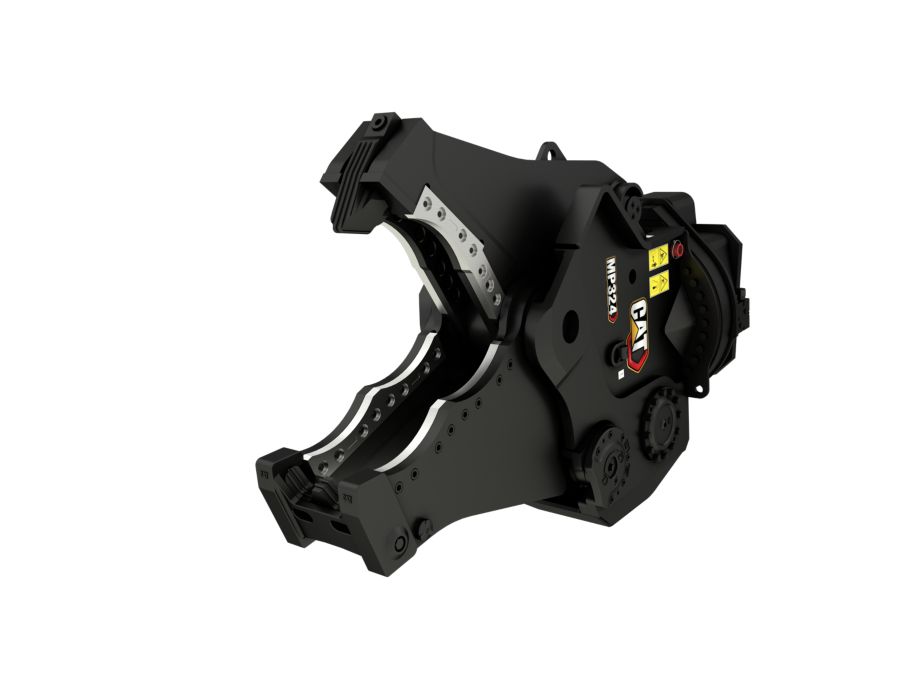

MP324 Universal Jaw

MP324 Universal Jaw
Caterpillar
Request a Quote Find a Location
Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.
Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.

Brochures and Spec Sheets

Gallery

MP324 Universal Jaw MP324 Universal Jaw MP324 Universal Jaw MP324 Universal Jaw MP324 Universal Jaw MP324 Universal Jaw

Specifications

Specification Value Unit
Cycle Time - Open 1.8 s
Cycle Time - Close 1.2 s
Crushing Force - Primary Cutter 409.8 Sh Ton
Crushing Force - Cutter Tip 220.8 Sh Ton
Crushing Force - Tooth Tip 132.6 Sh Ton
Jaw Circuit - Max. Oil Pressure 4786 psi
Jaw Circuit - Max. Oil Flow 59.4 gpm
Rotation Circuit - Max. Oil Pressure 2031 psi
Rotation Circuit - Max. Oil Flow 10.6 gpm
Jaw Depth 26.8 in
Cutter Length 20.7 in
Jaw Opening - Maximum 25.3 in
Jaw Width - Fixed 16.3 in
Jaw Width - Moveable 9.3 in
Length 86.1 in
Height 57.6 in
Width 31.2 in
Weight - Housing, Jaw and Bracket 6009.8 lb
Weight - Jaw Only 2383.2 lb
Excavator Minimum
Excavator Maximum
