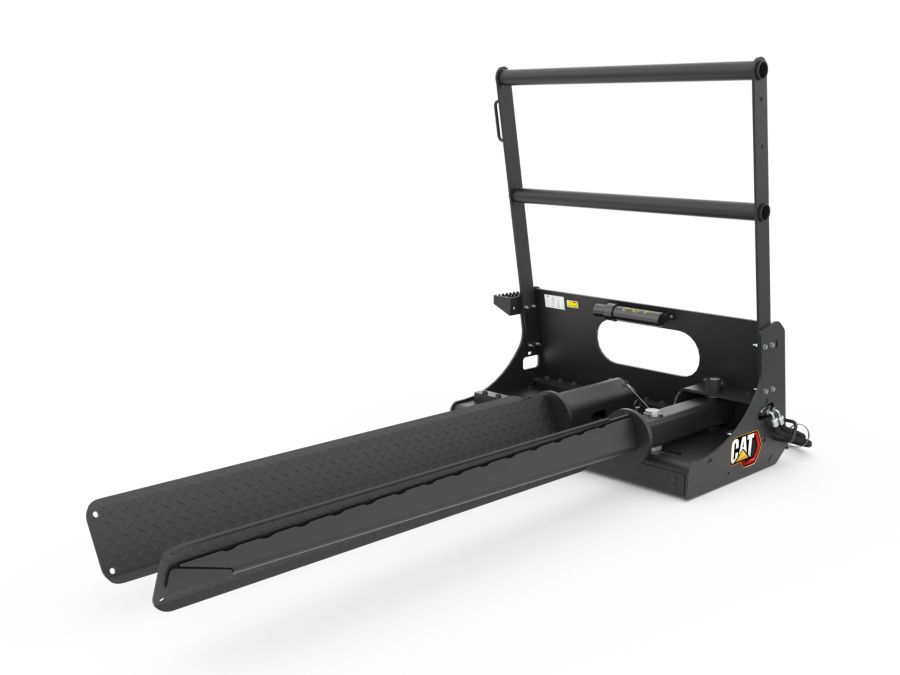

Manual Nursery Fork

Cat

Nursery Forks are used to move ball and burlap trees, as well as potted plants in nursery and landscaping applications.

Cat® Nursery forks for Compact Wheel loaders, Compact Track Loaders, and Skid Steer Loaders are designed to allow pivoting one fork out for gained maneuverability and handling capabilities in nursery and landscaping applications. Fork tines can be configured with a manually adjusted fork or hydraulically side shifting fork to give greater flexibility when handling multiple or different sized root balls.

Brochures and Spec Sheets

Cat® Nursery Forks Brochure

Gallery

Specifications

Specification	Value	Unit
Overall Length	98.1	in
Overall Width	52.2	in
Weight	754	lb
Overall Height	56.2	in
Usable Tine Length	70.4	in
Length Between Adjustments
Number of Adjustments
Total Tine Movement	15.5	in
Angled Tine Opening Minimum at Tip	1.9	in
Angled Tine Opening Maximum at Tip	47.1	in
Parallel Tine Opening Minimum	8.9	in
Parallel Tine Opening Maximum	24.3	in
Maximum Root Ball Diameter	54	in
Maximum Lifting Capacity	3000	lb
Optimal Hydraulic Flow
Optimal Hydraulic Pressure
Interface Type
Required Hydraulics
