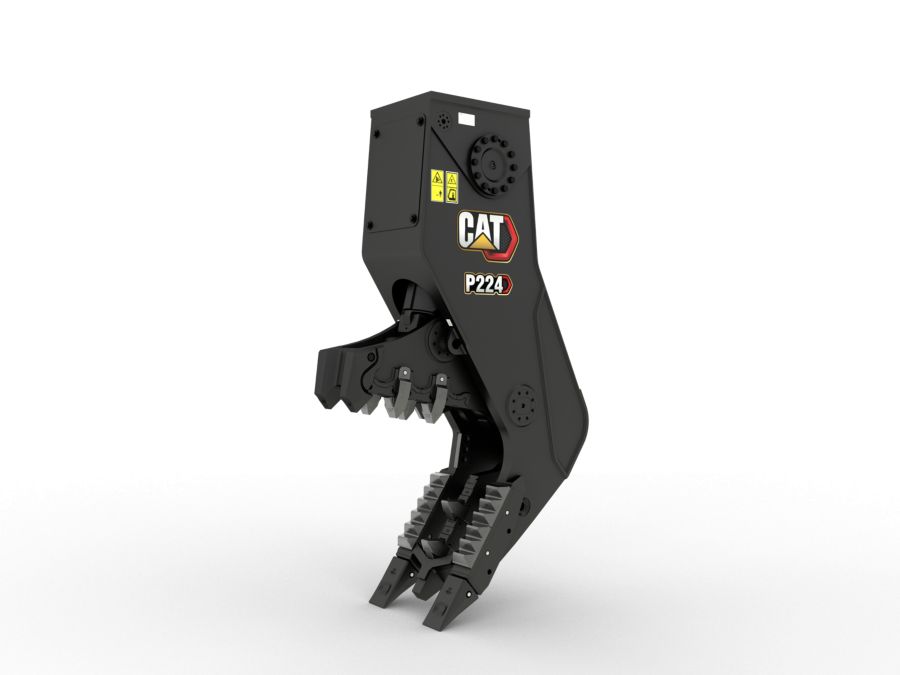

P224 Secondary Pulverizer

P224 Secondary Pulverizer
Cat
Request a Quote Find a Location
Cat P200 Series Secondary Pulverizers are designed to reduce the size of debris, clear up a job site, and separate concrete from rebar at ground level after demolition.
Cat® Pulverizers are perfectly matched to Cat excavators so you can deliver productive concrete demolition without compromising performance or machine health. Cat P200 Series Secondary Pulverizers are designed to reduce the size of debris, clear up a job site, and separate concrete from rebar at ground level after demolition.

Brochures and Spec Sheets

Gallery

P224 Secondary Pulverizer P224 Secondary Pulverizer P224 Secondary Pulverizer

Specifications

Specification Value Unit
Cycle Time - Open 1.9 s
Cycle Time - Close 1.3 s
Crushing Force - Primary Cutter 409 Sh Ton
Crushing Force - Tip 129 Sh Ton
Crushing Force - Primary Tooth 224 Sh Ton
Jaw Circuit - Max. Oil Pressure 4786 psi
Jaw Circuit - Max. Oil Flow 74 gpm
Jaw Depth 33.3 in
Cutter Length 7.9 in
Jaw Opening - Maximum 46.3 in
Jaw Width - Fixed 26 in
Jaw Width - Moveable 15 in
Length 107.3 in
Height 62.4 in
Width 26 in
Weight - Housing, Jaw and Bracket 5952 lb
Excavator Minimum
Excavator Maximum
