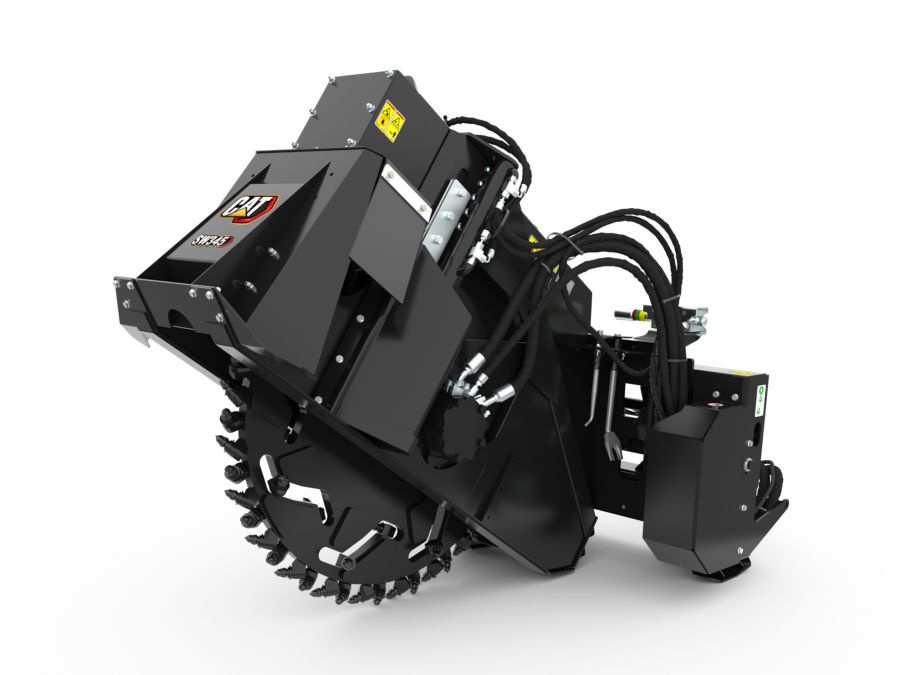

SW345, 80 mm (3 in)

SW345, 80 mm (3 in)
Cat
Request a Quote Find a Location
Ideal for asphalt patch cutting, road expansion join cuts, and utility trenching.
Cat® Wheel Saws are designed for high performance trench cutting on a variety of hard or compact surfaces such as asphalt, reinforced concrete, and rocky or frozen ground.

Brochures and Spec Sheets

Gallery

SW345, 80 mm (3 in) SW345, 80 mm (3 in) SW345, 80 mm (3 in) SW345, 80 mm (3 in) SW345, 80 mm (3 in) SW345, 80 mm (3 in) SW345, 80 mm (3 in)

Specifications

Specification Value Unit
Maximum Cutting Depth 17.7 in
Wheel Width 3.1 in
Weight 2482.4 lb
Overall Width 65.2 in
Overall Height 57.3 in
Length 85.2 in
Required Hydraulics
Optimal Hydraulic Flow
Optimal Hydraulic Pressure
Motor Displacement 85.7 in³/rev
Wheel Torque at Maximum Pressure 4605.3 lb/ft
Wheel Speed at Maximum Flow
Bit Speed at Maximum Flow 1145 ft/min
Conical Bits - Per Wheel
Standard Bit Type
Optional Bit Type
Side Shift Travel 21.7 in
Trench Cleaning Device
Drive Method
Interface Type
