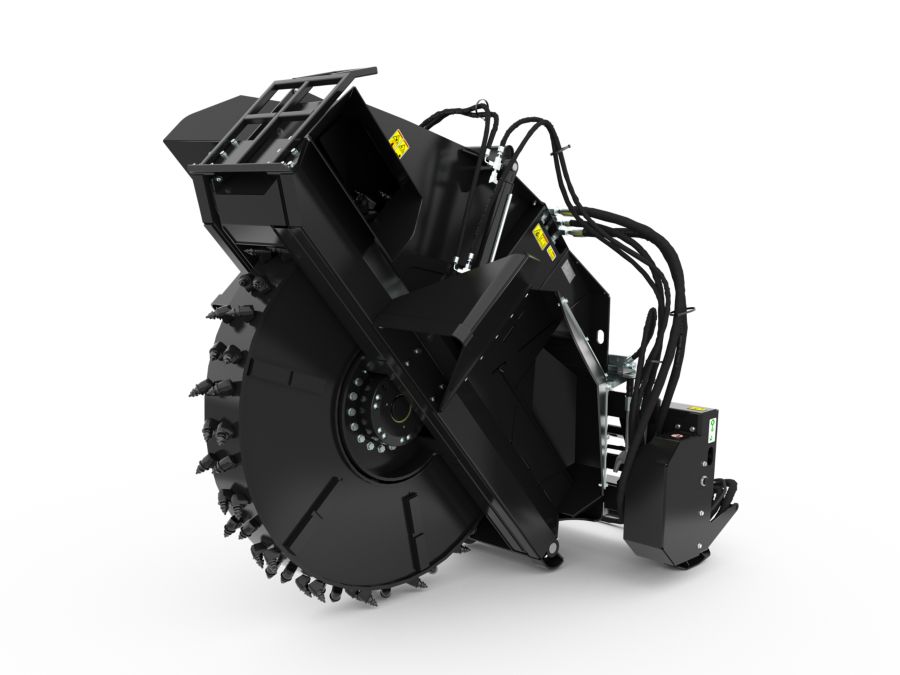

SW380, 250 mm (10 in)

SW380, 250 mm (10 in)
Cat
Request a Quote Find a Location
Ideal for asphalt patch cutting, road expansion join cuts, and utility trenching.
Cat® Wheel Saws are designed for high performance trench cutting on a variety of hard or compact surfaces such as asphalt, reinforced concrete, and rocky or frozen ground.

Brochures and Spec Sheets

Gallery

SW380, 250 mm (10 in) SW380, 250 mm (10 in) SW380, 250 mm (10 in) SW380, 250 mm (10 in) SW380, 250 mm (10 in) SW380, 250 mm (10 in) SW380, 250 mm (10 in)

Specifications

Specification Value Unit
Maximum Cutting Depth 31.5 in
Wheel Width 9.8 in
Weight 3196.7 lb
Overall Width 65.2 in
Overall Height 73.2 in
Length 102.4 in
Required Hydraulics
Optimal Hydraulic Flow
Optimal Hydraulic Pressure
Motor Displacement 102.9 in³/rev
Wheel Torque at Maximum Pressure 5538.4 lb/ft
Wheel Speed at Maximum Flow
Bit Speed at Maximum Flow 1220.5 ft/min
Conical Bits - Per Wheel
Standard Bit Type
Optional Bit Type
Side Shift Travel 21.7 in
Trench Cleaning Device
Drive Method
Interface Type
