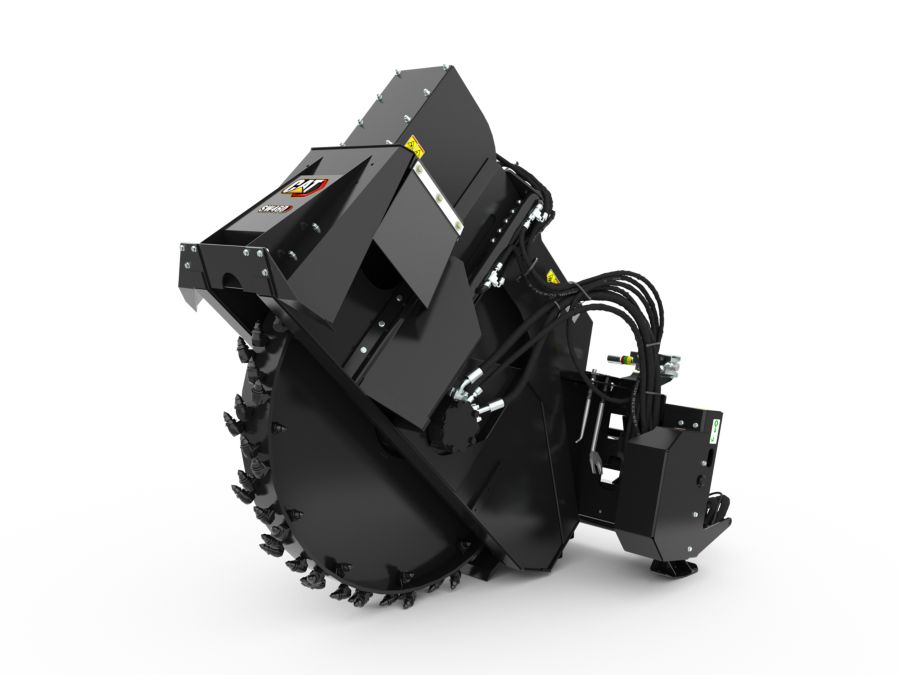

SW460, 200 mm (8 in)

SW460, 200 mm (8 in)
Cat
Request a Quote Find a Location
Ideal for asphalt patch cutting, road expansion join cuts, and utility trenching.
Cat® Wheel Saws are designed for high performance trench cutting on a variety of hard or compact surfaces such as asphalt, reinforced concrete, and rocky or frozen ground.

Brochures and Spec Sheets

Gallery

SW460, 200 mm (8 in) SW460, 200 mm (8 in) SW460, 200 mm (8 in) SW460, 200 mm (8 in) SW460, 200 mm (8 in) SW460, 200 mm (8 in) SW460, 200 mm (8 in)

Specifications

Specification Value Unit
Maximum Cutting Depth 23.6 in
Wheel Width 7.9 in
Weight 2921.1 lb
Overall Width 65.2 in
Overall Height 69.5 in
Length 95.2 in
Required Hydraulics
Optimal Hydraulic Flow
Optimal Hydraulic Pressure
Motor Displacement 102.9 in³/rev
Wheel Torque at Maximum Pressure 5538.4 lb/ft
Wheel Speed at Maximum Flow
Bit Speed at Maximum Flow 1410.8 ft/min
Conical Bits - Per Wheel
Standard Bit Type
Optional Bit Type
Side Shift Travel 21.7 in
Trench Cleaning Device
Drive Method
Interface Type
