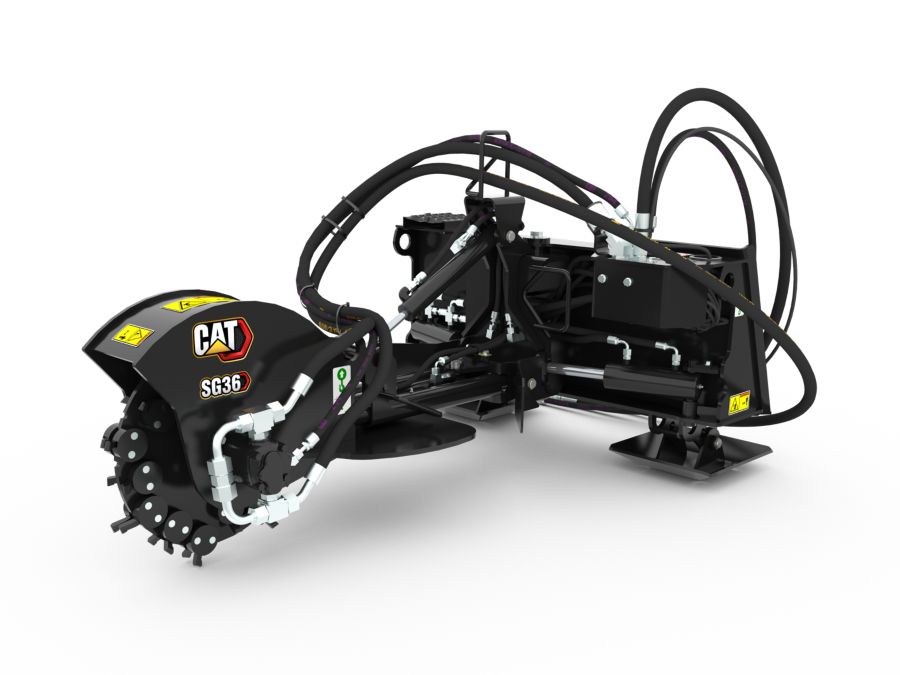

SG36

Cat

Designed to remove stumps in residential, commercial and agricultural settings.

Cat® Stump Grinders are designed to economically remove stumps in residential, commercial and agricultural settings. They offer increased production over tow-behind grinders in situations where multiple stump removal is required. The right balance of cutting wheel speed and torque makes quick work of most tree varieties.

Brochures and Spec Sheets

Cat® Stump Grinders Brochure

Gallery

Specifications

Specification	Value	Unit
Required Hydraulics
Cutting Wheel Diameter - With Teeth	21.5	in
Cutting Depth - Below Ground	20.5	in
Cutting Head Extension	11	in
Cutting Head Speed at Maximum Flow
Cutting Head Swing Range
Cutting Height - Above Ground	18.5	in
Cutting Wheel Width - With Teeth	3.3	in
Cutting Width - Full Swing Range	60	in
Drive Method
Drive Shaft Torque at Maximum Pressure	345.9	lb/ft
Motor Displacement	6.1	in³
Optimal Hydraulic Pressure
Overall Height	32	in
Overall Length	68.4	in
Overall Width	46.3	in
Optimal Hydraulic Flow
Weight	881.8	lb
Number of Carbide Teeth per Cutting Wheel
