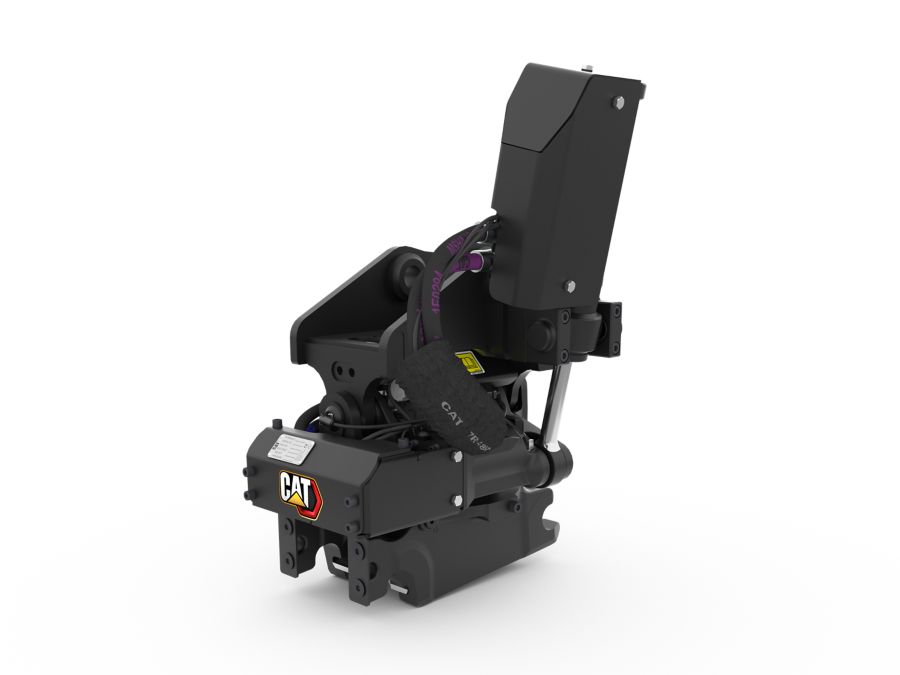

TRS4, Pin On (Pin Grabber)/S40, 2 Ton Mini Excavators

TRS4, Pin On (Pin Grabber)/S40, 2 Ton Mini Excavators
Cat
Request a Quote Find a Location
Cat® Tiltrotators help you maneuver obstacles in your work area without the need for repositioning your machine.
Cat® Tiltrotators for excavators provide 360-degree rotation and 40-degree tilting action side-to-side, allowing the machine to reach more work areas from a single position. The tiltrotator enables the operator to maneuver around posts, rocks, and other obstacles, as well as to reach along ditch edges more easily.

Brochures and Spec Sheets

Gallery

TRS4, Pin On (Pin Grabber)/S40, 2 Ton Mini Excavators TRS4, Pin On (Pin Grabber)/S40, 2 Ton Mini Excavators TRS4, Pin On (Pin Grabber)/S40, 2 Ton Mini Excavators TRS4, Pin On (Pin Grabber)/S40, 2 Ton Mini Excavators TRS4, Pin On (Pin Grabber)/S40, 2 Ton Mini Excavators TRS4, Pin On (Pin Grabber)/S40, 2 Ton Mini Excavators TRS4, Pin On (Pin Grabber)/S40, 2 Ton Mini Excavators

Specifications

Specification Value Unit
Machine Class
Weight 291 lb
Interface Options: Top-Bottom
Overall Height 27.6 in
Length 20.5 in
Overall Width 17.7 in
Rotation Speed
Tilt Angle Range
Maximum Bucket Capacity 3.9 ft³
Maximum Bucket Width 39.4 in
Optimal Hydraulic Flow
Maximum Operating Pressure 3045.8 psi
Required Hydraulics
Tilting Torque 4277.9 lb/ft
Turning Torque 1253.9 lb/ft
