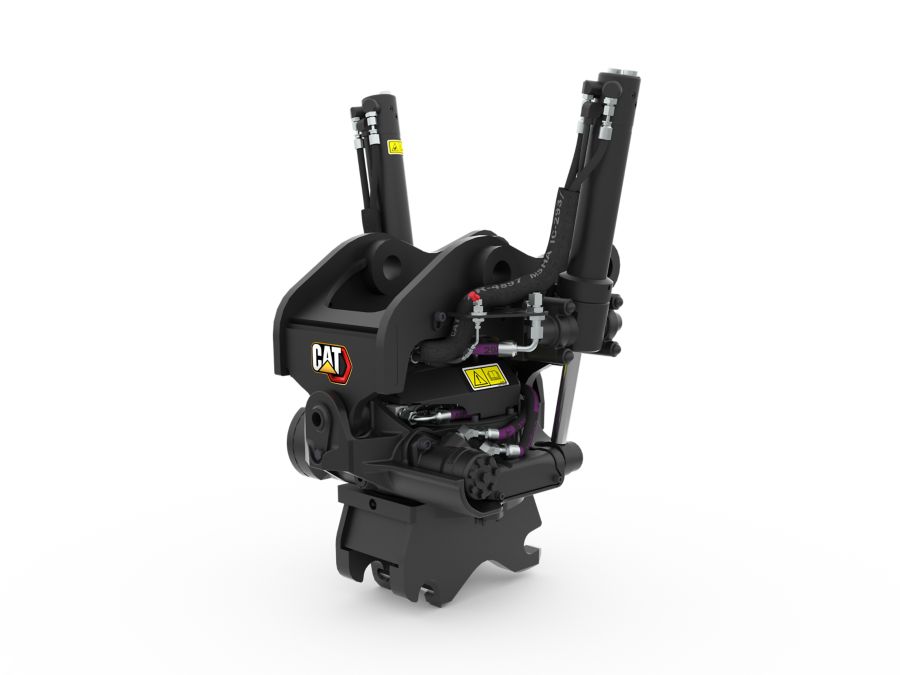

TRS8, Pin On (Pin Grabber)/Pin Grabber, 7-9 Ton Mini Excavators

TRS8, Pin On (Pin Grabber)/Pin Grabber, 7-9 Ton Mini Excavators
Cat
Request a Quote Find a Location
Cat® Tiltrotators help you maneuver obstacles in your work area without the need for repositioning your machine.
Cat® Tiltrotators for excavators provide 360-degree rotation and 40-degree tilting action side-to-side, allowing the machine to reach more work areas from a single position. The tiltrotator enables the operator to maneuver around posts, rocks, and other obstacles, as well as to reach along ditch edges more easily.

Brochures and Spec Sheets

Gallery

TRS8, Pin On (Pin Grabber)/Pin Grabber, 7-9 Ton Mini Excavators TRS8, Pin On (Pin Grabber)/Pin Grabber, 7-9 Ton Mini Excavators TRS8, Pin On (Pin Grabber)/Pin Grabber, 7-9 Ton Mini Excavators TRS8, Pin On (Pin Grabber)/Pin Grabber, 7-9 Ton Mini Excavators TRS8, Pin On (Pin Grabber)/Pin Grabber, 7-9 Ton Mini Excavators TRS8, Pin On (Pin Grabber)/Pin Grabber, 7-9 Ton Mini Excavators TRS8, Pin On (Pin Grabber)/Pin Grabber, 7-9 Ton Mini Excavators

Specifications

Specification Value Unit
Machine Class
Weight 694.5 lb
Interface Options: Top-Bottom
Overall Height 39.4 in
Length 26 in
Overall Width 27.8 in
Rotation Speed
Tilt Angle Range
Maximum Bucket Capacity 17.7 ft³
Maximum Bucket Width 59.1 in
Optimal Hydraulic Flow
Maximum Operating Pressure 3625.9 psi
Required Hydraulics
Tilting Torque 19545.4 lb/ft
Turning Torque 4499.1 lb/ft
