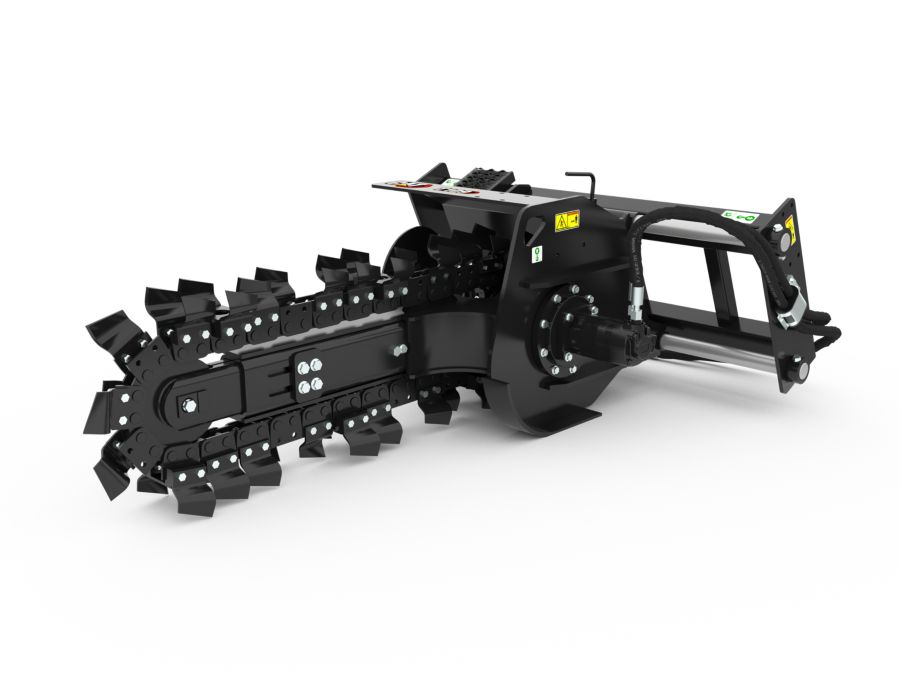

T109 Manual Side Shift, Standard Chain

T109 Manual Side Shift, Standard Chain
Cat
Request a Quote Find a Location
Designed for cutting narrow straight trenches in soil prior to laying electrical, telephone and cable lines, or water and gas pipe.
Cat® Trenchers are designed for cutting narrow straight trenches in the soil prior to laying electrical, telephone and cable lines, or water and gas pipe. Trenchers are ideal for residential, commercial, agricultural, building construction, lawn care and golf course maintenance.

Brochures and Spec Sheets

Gallery

T109 Manual Side Shift, Standard Chain T109 Manual Side Shift, Standard Chain T109 Manual Side Shift, Standard Chain T109 Manual Side Shift, Standard Chain T109 Manual Side Shift, Standard Chain T109 Manual Side Shift, Standard Chain T109 Manual Side Shift, Standard Chain T109 Manual Side Shift, Standard Chain T109 Manual Side Shift, Standard Chain T109 Manual Side Shift, Standard Chain

Specifications

Specification Value Unit
Standard Boom Length 36 in
Cutting Width 8 in
Chain Type
Required Hydraulics
Overall Width 56.1 in
Overall Length 92.4 in
Weight 1028 lb
Overall Height 30.9 in
Optimal Hydraulic Flow
Optimal Hydraulic Pressure
Drive Shaft Speed at Maximum Flow
Side Shift Travel 16.5 in
Maximum Auger Clearance 21 in
Spoil Auger Diameter 18 in
Optional Cutting Widths
