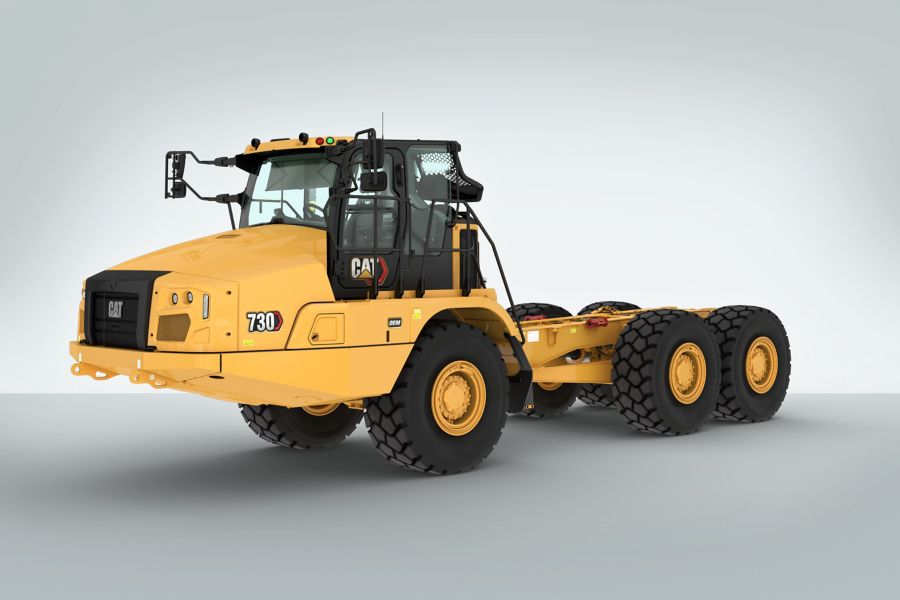

The Cat® OEM 730 Bare Chassis is equipped with a true “on-the-go” Automatic Traction Control (ATC) system. Advanced Productivity Electronics Control Strategy (APECS) delivers a smooth shifting transmission, improving acceleration with higher productivity. This bare chassis is available in both standard and long wheel base.

Cat chassis are the right choice for specialty truck bodies (coal, trash), water trucks, fuel and lube, service vehicles, container carriers, hook lifts, and other machine derivatives. These specialty machines have proven themselves in construction, industrial, waste, material handling, quarry, and mining projects worldwide.
The OEM 730 Bare Chassis is a true “on-the-go” Automatic Traction Control (ATC). Strong, durable Cat C13B engine platform with U.S. EPA Tier 4 Final/EU Stage IV engine emission solution. Advanced Productivity Electronics Control Strategy (APECS) delivers a smooth shifting transmission, improving acceleration with higher productivity.

Brochures and Spec Sheets

Gallery

730 Bare Chassis 730 Bare Chassis 730 Bare Chassis 730 Bare Chassis 730 Bare Chassis

Specifications

Specification Value Unit
Engine Model
Gross Power - SAE J1995:2014 375 hp
Net Power - SAE J1349:2011 367 hp
Bore 5.1 in
Stroke 6.2 in
Displacement 763 in³
Peak Engine Torque Speed 1200 r/min
Peak Engine Torque Gross (SAE J1995) 1579 lb/ft
Peak Engine Torque Net (SAE J1349) 1554 ft·lbf
No Engine De-rating Required Below 12500 ft
Engine Model - U.S. EPA Tier 4 Final/EU Stage IV
Standard Wheel Base 156.7 in
Long Wheel Base 215.2 in
Rated Payload 31 ton (US)
Forward - 1 5 mile/h
Forward - 2 9 mile/h
Forward - 3 14 mile/h
Forward - 4 21 mile/h
Forward - 5 29 mile/h
Forward - 6 34 mile/h
Reverse - 1 6 mile/h
Fuel Tank 105.7 gal (US)
Cooling System 21.9 gal (US)
Hydraulic System 32.5 gal (US)
Engine Crankcase 11.4 gal (US)
Transmission 12.4 gal (US)
Final Drives/Differential 33 gal (US)
Output Transfer Gear Box 6.6 gal (US)
DEF Tank 9 gal (US)
Interior Cab 70 dB(A)
Brakes
Cab - FOPS
Cab - ROPS
Steering
Lock to Lock
Turning Dimensions - Steer Angle - Left/Right 45 °
Turning Dimensions - SAE Turning Radius 294 in
Turning Dimensions - Inside Radius 153 in
Turning Dimensions - Aisle Width 210 in
Turning Dimensions - Clearance Radius 318 in
Note

Standard Equipment

  • For more information on 730 Bare Chassis options, please contact Caterpillar OEM Solutions at <a href="mailto:oem_solutions@cat.com">oem_solutions@cat.com</a>.
  • NOTE
  • OPERATOR ENVIRONMENT
  • CAT TECHNOLOGIES
  • ELECTRICAL AND LIGHTING
  • POWERTRAIN
  • SAFETY
  • GUARDS
  • OTHER EQUIPMENT

Optional Equipment

  • NOTE
  • OPERATOR ENVIRONMENT
  • CAT TECHNOLOGIES
  • ELECTRICAL AND LIGHTING
  • SAFETY
  • OTHER EQUIPMENT
