The Cat® OEM 740 Bare Chassis is available in a standard wheel base. With up to a 36.3 tonnes (40 tons) capacity, the 740 bare chassis offers proven reliability, durability, high productivity, superior operator comfort, and lower operating costs.

Cat chassis are the right choice for specialty truck bodies (coal, trash), water trucks, fuel and lube, service vehicles, container carriers, hook lifts, and other machine derivatives. These specialty machines have proven themselves in construction, industrial, waste, material handling, quarry, and mining projects worldwide.
The Cat® OEM 740 Bare Chassis is available in a standard wheel base. With up to a 36.3 tonnes (40 tons) capacity, the 740 bare chassis offers proven reliability, durability, high productivity, superior operator comfort and lower operating costs.

Cat chassis are the right choice for specialty truck bodies (coal, trash), water trucks, fuel and lube, service vehicles, container carriers, hook lifts and other machine derivatives. These specialty machines have proven themselves in construction, industrial, waste, material handling, quarry, and mining projects worldwide.

Brochures and Spec Sheets

Gallery

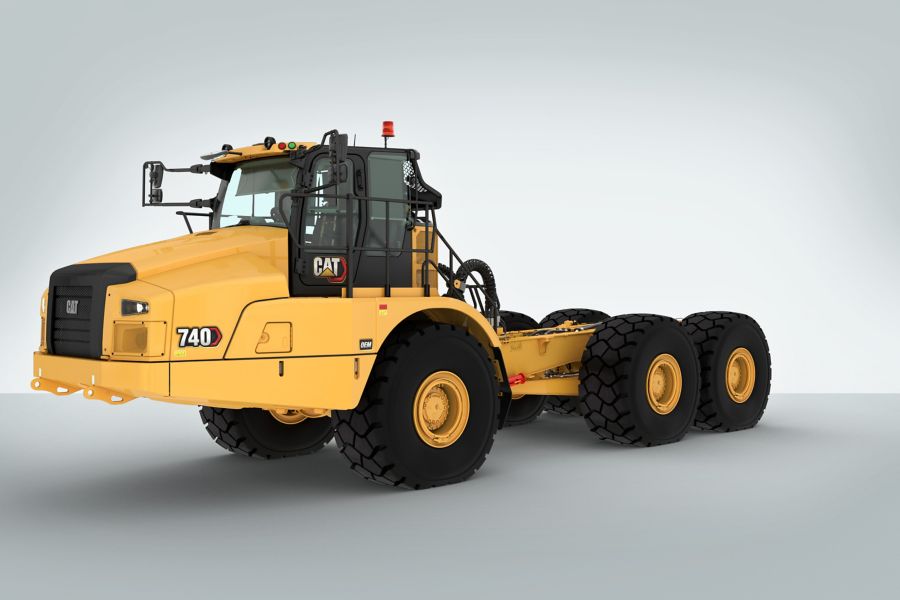

740 Bare Chassis 740 Bare Chassis 740 Bare Chassis 740 Bare Chassis 740 Bare Chassis

Specifications

Specification Value Unit
Engine Model
Gross Power - SAE J1995:2014 452 hp
Net Power - SAE J1349:2011 439 hp
Bore 5.4 in
Stroke 6.75 in
Displacement 926 in³
Peak Engine Torque Gross (SAE J1995) 1711 lb/ft
Peak Engine Torque Net (SAE J1349) 1670 lb/ft
Peak Engine Torque Speed 1200 r/min
No Engine De-rating Required Below 10000 ft
Engine Model - U.S. EPA Tier 4 Final/EU Stage IV/Japan 2014 (Tier 4 Final)/Korea Tier 4 Final
Standard Wheel Base 162.4 in
Rated Payload 40 ton (US)
Forward - 1 4 mile/h
Forward - 2 5.3 mile/h
Forward - 3 7.3 mile/h
Forward - 4 9.2 mile/h
Forward - 5 12.2 mile/h
Forward - 6 14.9 mile/h
Forward - 7 20.6 mile/h
Forward - 8 24.7 mile/h
Forward - 9 35.7 mile/h
Reverse - 1 4.2 mile/h
Reverse - 2 9.8 mile/h
Fuel Tank 143.5 gal (US)
Cooling System 23.7 gal (US)
Brake Cooling Tank 17.7 gal (US)
Steering/Hoist Hydraulic System 36.9 gal (US)
Engine Crankcase 13.7 gal (US)
Transmission - OTG 19.8 gal (US)
Final Drive - Each 1.3 gal (US)
Axles - Each 15.8 gal (US)
DEF Tank 25 gal (US)
Interior Cab 72 dB(A)
Brakes
Cab - FOPS
Cab - ROPS
Steering
Lock to Lock
Turning Dimensions - Aisle Width 220 in
Turning Dimensions - SAE Turning Radius 303 in
Turning Dimensions - Clearance Radius 330 in
Turning Dimensions - Inside Radius 156 in
Turning Dimensions - Steer Angle - Left/Right
Note

Standard Equipment

  • For more information on 740 Bare Chassis options, please contact Caterpillar OEM Solutions at <a href="mailto:oem_solutions@cat.com">oem_solutions@cat.com</a>.
  • NOTE
  • OPERATOR ENVIRONMENT
  • CAT TECHNOLOGIES
  • ELECTRICAL AND LIGHTING
  • POWERTRAIN
  • SAFETY
  • GUARDS
  • OTHER STANDARD EQUIPMENT

Optional Equipment

  • NOTE
  • OPTIONAL EQUIPMENT
