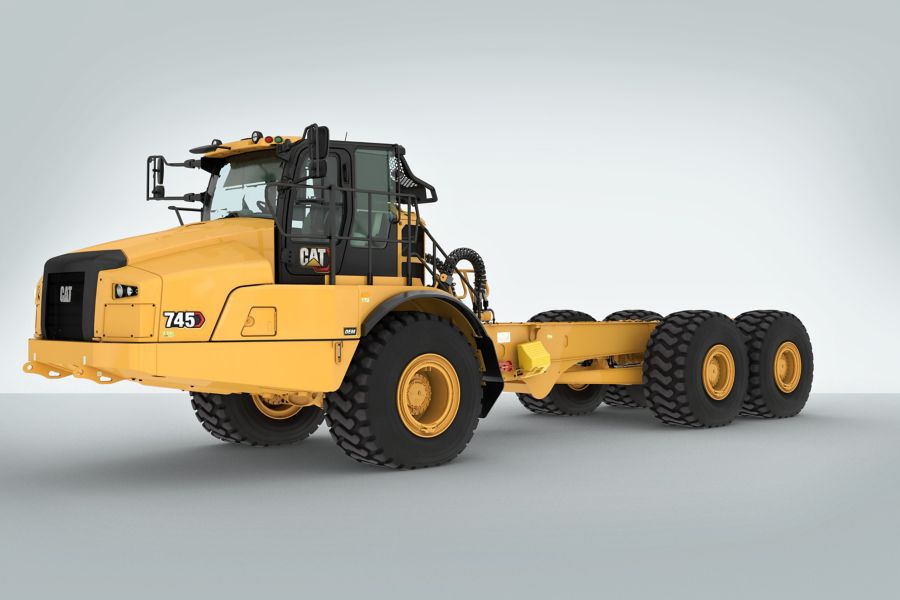

The Cat® OEM 745 Bare Chassis is available in both standard and long wheel base. With up to a 41 tonnes (45.2 tons) capacity, the 745 bare chassis offers proven reliability, durability, high productivity, superior operator comfort, and lower operating costs. The long wheel base configuration accommodates longer specialty OEM bodies, while retaining high-quality steering, braking, and ride characteristics.

Cat chassis are the right choice for specialty truck bodies (coal, trash), water trucks, fuel and lube, service vehicles, container carriers, hook lifts, and other machine derivatives. These specialty machines have proven themselves in construction, industrial, waste, material handling, quarry, and mining projects worldwide.
The Cat® OEM 745 Bare Chassis is available in both standard and long wheel base. With up to a 41 tonnes (45.2 tons) capacity, the 745 bare chassis offers proven reliability, durability, high productivity, superior operator comfort and lower operating costs. The long wheel base configuration accommodates longer specialty OEM bodies, while retaining high-quality steering, braking, and ride characteristics.

Cat chassis are the right choice for specialty truck bodies (coal, trash), water trucks, fuel and lube, service vehicles, container carriers, hook lifts and other machine derivatives. These specialty machines have proven themselves in construction, industrial, waste, material handling, quarry, and mining projects worldwide.

Brochures and Spec Sheets

Gallery

745 Bare Chassis 745 Bare Chassis 745 Bare Chassis 745 Bare Chassis 745 Bare Chassis

Specifications

Specification Value Unit
Engine Model
Gross Power - SAE J1995:2014 511 hp
Net Power - SAE J1349:2011 496 hp
Bore 5.7 in
Stroke 7.2 in
Displacement 1106 in³
Peak Engine Torque Net (SAE J1349) 1887 lb/ft
Peak Engine Torque Gross (SAE J1995) 1931 lb/ft
Peak Engine Torque Speed 1200 r/min
No Engine De-rating Required Below 10000 ft
Engine Model - U.S. EPA Tier 4 Final/EU Stage IV/Japan 2014 (Tier 4 Final)/Korea Tier 4 Final
Standard Wheel Base 180.7 in
Long Wheel Base 228.4 in
Rated Payload 45.2 ton (US)
Forward - 1 3.8 mile/h
Forward - 2 5 mile/h
Forward - 3 7 mile/h
Forward - 4 8.8 mile/h
Forward - 5 11.6 mile/h
Forward - 6 14.2 mile/h
Forward - 7 19.6 mile/h
Forward - 8 23.5 mile/h
Forward - 9 34 mile/h
Reverse - 1 4 mile/h
Reverse - 2 9.1 mile/h
Fuel Tank 145.3 gal (US)
DEF Tank 5.3 gal (US)
Cooling System 23.7 gal (US)
Brake Cooling Tank 17.7 gal (US)
Steering/Hoist Hydraulic System 36.9 gal (US)
Engine Crankcase 13.7 gal (US)
Transmission - OTG 19.8 gal (US)
Final Drive - Each 1.3 gal (US)
Axles - Each 15.8 gal (US)
Final Drives/Differential 33 gal (US)
Interior Cab 72 dB(A)
Brakes
Cab - FOPS
Cab - ROPS
Steering
Lock to Lock
Turning Dimensions - Steer Angle - Left/Right
Turning Dimensions - Clearance Radius 356 in
Turning Dimensions - SAE Turning Radius 340 in
Turning Dimensions - Inside Radius 174 in
Turning Dimensions - Aisle Width 233 in
Note

Standard Equipment

  • For more information on 745 Bare Chassis options, please contact Caterpillar OEM Solutions at <a href="mailto:oem_solutions@cat.com">oem_solutions@cat.com</a>.
  • NOTE
  • OPERATOR ENVIRONMENT
  • CAT TECHNOLOGIES
  • ELECTRICAL AND LIGHTING
  • POWER TRAIN
  • SAFETY
  • GUARDS
  • OTHER STANDARD EQUIPMENT

Optional Equipment

  • NOTE
  • OPTIONAL EQUIPMENT
