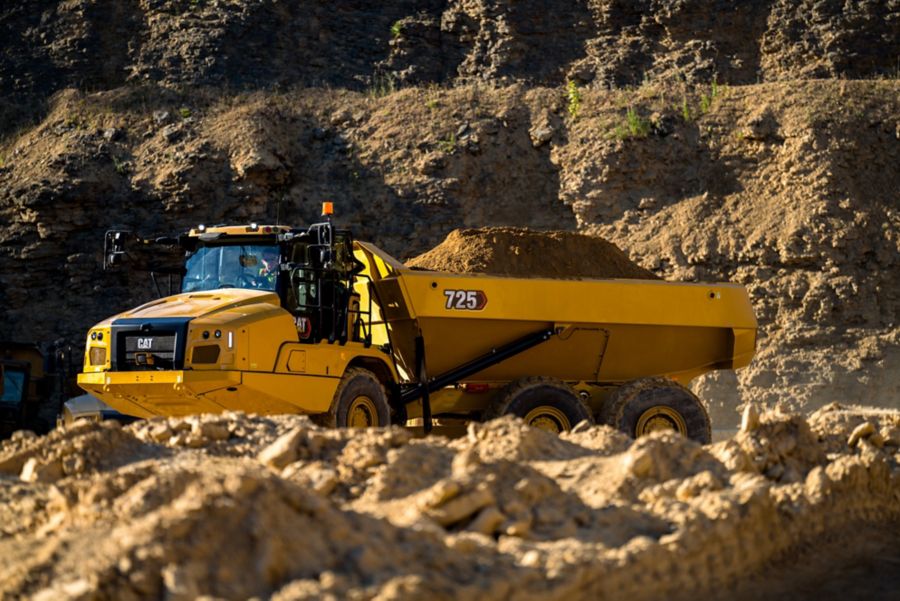

725
Haul more, dump more with the Cat® 725 articulated truck. Get more done with less effort. Automated technology features simplify operation, while its efficient power-to-weight ratio cuts fuel costs—so you move more material for less.
Haul more, dump more with the Cat® 725 articulated truck. Get more done with less effort. Automated technology features simplify operation, while its efficient power-to-weight ratio cuts fuel costs—so you move more material for less.
Brochures and Spec Sheets
- 725 Product Brochure (Aus-NZ, Eur, Japan, N Am)
- 725 (05A) Key Features (N Am, Eur, Aus-NZ, Jpn)
- 725 (05A) Technical Specifications (N Am, Europe, Aus-NZ, Japan)
Gallery
Specifications
| Specification | Value | Unit |
|---|---|---|
| Engine Model | ||
| Gross Power (SAE J1995) | 352 | hp |
| Net Power (SAE J1349) | 345 | hp |
| Engine Power (ISO 14396) | 347 | hp |
| Bore | 5.12 | in |
| Stroke | 6.18 | in |
| Displacement | 763 | in³ |
| Note (1) | ||
| Note (2) | ||
| Note (3) | ||
| Note (4) | ||
| Note (5) | ||
| Note (6) | ||
| No Engine De-rating Below | 12500 | ft |
| Peak Engine Torque Gross (SAE J1995) | 1431 | lbf·ft |
| Peak Engine Torque Net (SAE J1349) | 1263 | lbf·ft |
| Peak Engine Torque Speed | 1200 | r/min |
| Rated Payload | 26.5 | ton (US) |
| Heaped (SAE 2:1) | 19.6 | yd³ |
| Struck | 15 | yd³ |
| Tailgate Heaped SAE 2:1 | 20.8 | yd³ |
| Tailgate Struck | 15.7 | yd³ |
| Forward - 1 | 5 | mile/h |
| Forward - 2 | 9 | mile/h |
| Forward - 3 | 14 | mile/h |
| Forward - 4 | 21 | mile/h |
| Forward - 5 | 29 | mile/h |
| Forward - 6 | 34 | mile/h |
| Reverse - 1 | 6 | mile/h |
| Note (1) | ||
| Note (2) | ||
| Front Axle - Empty | 31438 | lb |
| Center Axle - Empty | 10009 | lb |
| Rear Axle - Empty | 9502 | lb |
| Total - Empty | 50949 | lb |
| Front Axle - Rated Load | 5564 | lb |
| Center Axle - Rated Load | 23673 | lb |
| Rear Axle - Rated Load | 23673 | lb |
| Total - Rated Load | 52911 | lb |
| Front Axle - Loaded | 37002 | lb |
| Center Axle - Loaded | 33682 | lb |
| Rear Axle - Loaded | 33175 | lb |
| Total - Loaded | 103860 | lb |
| Type | ||
| Front Plate | 0.28 | in |
| Base Plate | 0.51 | in |
| Side Plates | 0.43 | in |
| Scow | 0.51 | in |
| Fuel Tank | 105.7 | gal (US) |
| Cooling System | 21.9 | gal (US) |
| Steering/Hoist Hydraulic System | 32.5 | gal (US) |
| Engine Crankcase | 11.4 | gal (US) |
| Transmission | 12.4 | gal (US) |
| Output Transfer Gear Box | 6.6 | gal (US) |
| Final Drive - Each | 33 | gal (US) |
| DEF Tank | 9 | gal (US) |
| Raise Time | 12 | s |
| Lower Time | 8 | s |
| Brakes | ||
| Cab - FOPS | ||
| Cab - ROPS | ||
| Steering | ||
| Turning Dimensions - Steer Angle - Left/Right | ||
| Turning Dimensions - SAE Turning Radius | 294 | in |
| Turning Dimensions - Clearance Radius | 318 | in |
| Turning Dimensions - Inside Radius | 153 | in |
| Turning Dimensions - Aisle Width | 210 | in |
| Note | ||
| Lock to Lock | ||
| Hydraulic Excavators: 350/352 - Passes | ||
| Hydraulic Excavators: 336 - Passes | ||
| Wheel Loaders: 972/972 XE - Passes | ||
| Wheel Loaders: 966/966 XE - Passes | ||
| Wheel Loader: 962 - Passes | ||
| Wheel Loader: 950 - Passes | ||
| Note |
Standard Equipment
- NOTE
- OPERATOR ENVIRONMENT
- TECHNOLOGY
- ELECTRICAL AND LIGHTING
- POWERTRAIN
- SAFETY
- GUARDS
- OTHER STANDARD EQUIPMENT
Optional Equipment
- NOTE
- OPERATOR ENVIRONMENT
- TECHNOLOGY
- ELECTRICAL AND LIGHTING
- OPTIONAL EQUIPMENT
