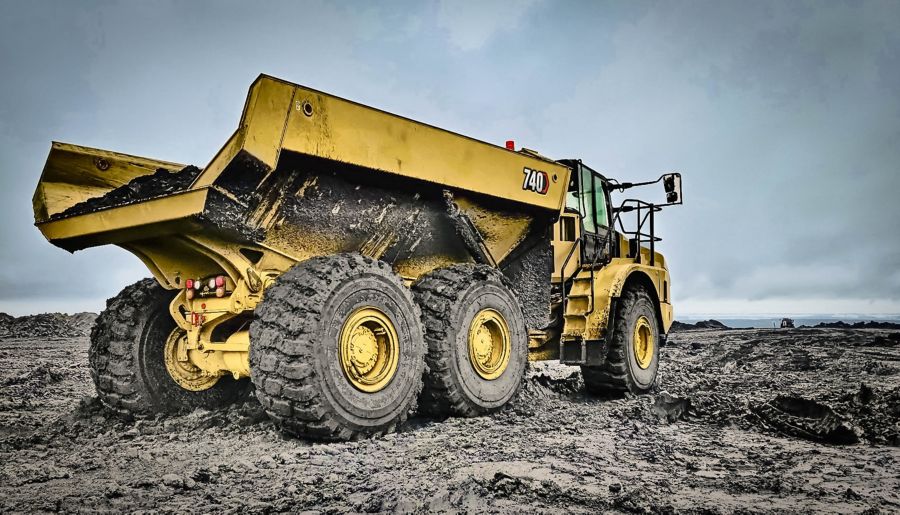

740
The Cat® 740 raises the bar for operator comfort and control. Its redesigned, world‑class cab is built to deliver a smoother, smarter, more intuitive experience. With upgraded controls, built‑in transmission protection, hoist assist, advanced automatic traction control, stability‑assist rollover warnings, and an ECO mode that cuts fuel use, the 740 is engineered to keep productivity high and operating costs low.
The Cat® 740 raises the bar for operator comfort and control. Its redesigned, world‑class cab is built to deliver a smoother, smarter, more intuitive experience. With upgraded controls, built‑in transmission protection, hoist assist, advanced automatic traction control, stability‑assist rollover warnings, and an ECO mode that cuts fuel use, the 740 is engineered to keep productivity high and operating costs low.
740
Brochures and Spec Sheets
- 740 (04B) Key Features (Afr-ME, Aus-NZ, Eurasia, Indonesia, Pacific Islands, S Am)
- 740 (04B) Technical Specifications (Aus-NZ, Eur, Japan, N Am)
Gallery
Specifications
| Specification | Value | Unit |
|---|---|---|
| Engine Model | ||
| Gross Power (SAE J1995) | 452 | hp |
| Net Power (SAE J1349) | 439 | hp |
| Engine Power (ISO 14396) | 447 | hp |
| Bore | 5.4 | in |
| Stroke | 6.75 | in |
| Displacement | 926 | in³ |
| Note (1) | ||
| Note (2) | ||
| Note (3) | ||
| Note (4) | ||
| Note (5) | ||
| Note (6) | ||
| No Engine De-rating Below | 10000 | ft |
| Peak Engine Torque Gross (SAE J1995) | 1711 | lbf·ft |
| Peak Engine Torque Net (SAE J1349) | 1670 | lbf·ft |
| Peak Engine Torque Speed | 1200 | r/min |
| Rated Payload | 40 | ton (US) |
| Heaped (SAE 2:1) | 29.7 | yd³ |
| Struck | 23.2 | yd³ |
| Tailgate Heaped SAE 2:1 | 32 | yd³ |
| Tailgate Struck | 24.4 | yd³ |
| Forward - 1 | 4 | mile/h |
| Forward - 2 | 5.3 | mile/h |
| Forward - 3 | 7.3 | mile/h |
| Forward - 4 | 9.2 | mile/h |
| Forward - 5 | 12.2 | mile/h |
| Forward - 6 | 14.9 | mile/h |
| Forward - 7 | 20.6 | mile/h |
| Forward - 8 | 24.7 | mile/h |
| Forward - 9 | 35.7 | mile/h |
| Reverse - 1 | 4.2 | mile/h |
| Reverse - 2 | 9.8 | mile/h |
| Interior Cab | 72 | dB(A) |
| Note (1) | ||
| Note (2) | ||
| Front Axle - Empty | 43200 | lb |
| Center Axle - Empty | 14804 | lb |
| Rear Axle - Empty | 14562 | lb |
| Total - Empty | 72565 | lb |
| Front Axle - Rated Load | 7002 | lb |
| Center Axle - Rated Load | 36513 | lb |
| Rear Axle - Rated Load | 36513 | lb |
| Total - Rated Load | 80027 | lb |
| Front Axle - Loaded | 50201 | lb |
| Center Axle - Loaded | 51317 | lb |
| Rear Axle - Loaded | 51074 | lb |
| Total - Loaded | 152593 | lb |
| Type | ||
| Front Plate | 0.28 | in |
| Base Plate | 0.51 | in |
| Side Plates | 0.43 | in |
| Fuel Tank | 145.3 | gal (US) |
| Cooling System | 23.7 | gal (US) |
| Brake Cooling Tank | 17.7 | gal (US) |
| Steering/Hoist Hydraulic System | 36.9 | gal (US) |
| Engine Crankcase | 13.7 | gal (US) |
| Transmission - OTG | 19.8 | gal (US) |
| Final Drive - Each | 1.3 | gal (US) |
| Axles - Each | 15.8 | gal (US) |
| DEF Tank | 6.5 | gal (US) |
| Raise Time | 12 | s |
| Lower Time | 12 | s |
| Brakes | ||
| Cab - FOPS | ||
| Cab - ROPS | ||
| Steering | ||
| Turning Dimensions - Steer Angle - Left/Right | ||
| Turning Dimensions - SAE Turning Radius | 303 | in |
| Turning Dimensions - Clearance Radius | 330 | in |
| Turning Dimensions - Inside Radius | 156 | in |
| Turning Dimensions - Aisle Width | 220 | in |
| Note | ||
| Lock to Lock | ||
| Hydraulic Excavator: 374 - Passes | ||
| Hydraulic Excavator: 352 - Passes | ||
| Wheel Loader: 972 - Passes | ||
| Wheel Loader: 966 - Passes | ||
| Wheel Loader: 962 - Passes | ||
| Note |
Standard Equipment
- NOTE
- OPERATOR ENVIRONMENT
- TECHNOLOGY
- ELECTRICAL AND LIGHTING
- POWERTRAIN
- SAFETY
- GUARDS
- OTHER STANDARD EQUIPMENT
Optional Equipment
- NOTE
- OPERATOR ENVIRONMENT
- TECHNOLOGY
- ELECTRICAL AND LIGHTING
- OPTIONAL EQUIPMENT
