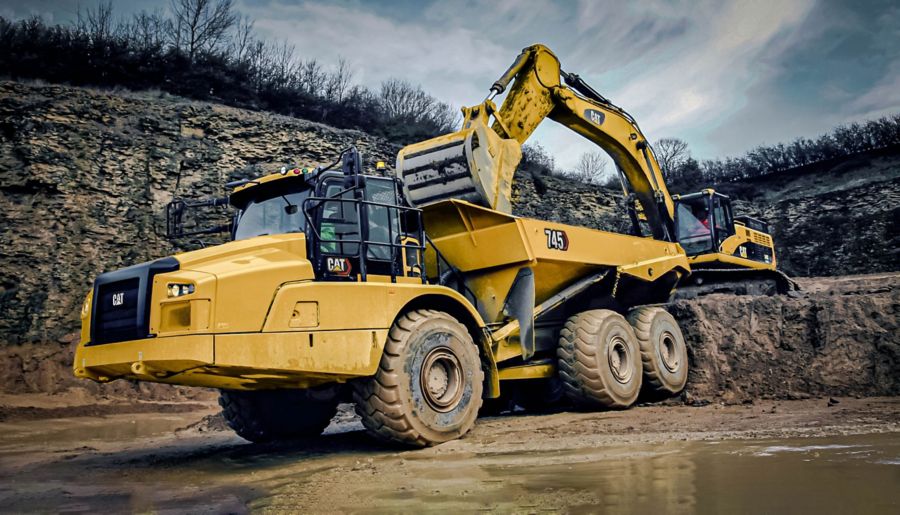

745
The Cat® 745 features a world-class cab design, re-engineered using global operator feedback to advance comfort and ease of operation. Enhancements include new controls, transmission-protection features, hoist-assist system, advanced automatic traction control system, stability-assist machine rollover warning system, and a fuel saving ECO mode.
The Cat 745 with a 25 m³ (32.7 yd³) 41 tonnes (45.2 tons) capacity brings a new level of operator comfort and features to the market in addition to the durability, high productivity and lower operating costs Cat Articulated Trucks are known for. The all-new operator cabin is a leap into the next generation for Articulated Trucks, providing our operators the best place to help build the future.
Brochures and Spec Sheets
- 745 Key Features (NACD, EU, Turkey, Puerto Rico, Isreal, Korea)
- 745 Technical Specifications (Aus-NZ, Eur, Japan, N Am)
Gallery
Specifications
| Specification | Value | Unit |
|---|---|---|
| Engine Model | ||
| Gross Power (SAE J1995) | 511 | hp |
| Net Power (SAE J1349) | 496 | hp |
| Engine Power (ISO 14396) | 504 | hp |
| Bore | 5.7 | in |
| Stroke | 7.2 | in |
| Displacement | 1106 | in³ |
| Note (1) | ||
| Note (2) | ||
| Note (3) | ||
| Note (4) | ||
| Note (5) | ||
| Note (6) | ||
| No Engine De-rating Required Below | 10000 | ft |
| Peak Engine Torque Gross (SAE J1995) | 1931 | ft·lbf |
| Peak Engine Torque Net (SAE J1349) | 1887 | lbf·ft |
| Peak Engine Torque Speed | 1200 | r/min |
| Rated Payload | 45.2 | t |
| Air Conditioning | ||
| Heaped (SAE 2:1) | 33.4 | yd³ |
| Struck | 26 | yd³ |
| Tailgate Heaped SAE 2:1 | 35.7 | yd³ |
| Tailgate Struck | 27.3 | yd³ |
| Forward - 1 | 3.8 | mile/h |
| Forward - 2 | 5 | mile/h |
| Forward - 3 | 7 | mile/h |
| Forward - 4 | 8.8 | mile/h |
| Forward - 5 | 11.6 | mile/h |
| Forward - 6 | 14.2 | mile/h |
| Forward - 7 | 19.6 | mile/h |
| Forward - 8 | 23.5 | mile/h |
| Forward - 9 | 34 | mile/h |
| Reverse - 1 | 4 | mile/h |
| Reverse - 2 | 9.1 | mile/h |
| Interior Cab | 72 | dB(A) |
| Note (1) | ||
| Note (2) | ||
| Front Axle - Empty | 42285 | lb |
| Center Axle - Empty | 15653 | lb |
| Rear Axle - Empty | 15058 | lb |
| Total - Empty | 72995 | lb |
| Front Axle - Rated Load | 12963 | lb |
| Center Axle - Rated Load | 38713 | lb |
| Rear Axle - Rated Load | 38713 | lb |
| Total - Rated Load | 90389 | lb |
| Front Axle - Loaded | 55248 | lb |
| Center Axle - Loaded | 54366 | lb |
| Rear Axle - Loaded | 53771 | lb |
| Total - Loaded | 163385 | lb |
| Type | ||
| Front | 0.28 | in |
| Chute | 0.55 | in |
| Side | 0.43 | in |
| Base | 0.55 | in |
| Raise (manual) | 12 | s |
| Raise (automatic) | 13 | s |
| Lower (manual) | 10 | s |
| Lower (automatic) | 10 | s |
| Fuel Tank | 145.3 | gal (US) |
| DEF Tank | 5.3 | gal (US) |
| Cooling System | 23.7 | gal (US) |
| Brake Cooling Tank | 17.7 | gal (US) |
| Steering/Hoist Hydraulic System | 36.9 | gal (US) |
| Engine Crankcase | 13.7 | gal (US) |
| Transmission - OTG | 19.8 | gal (US) |
| Final Drive - Each | 1.3 | gal (US) |
| Axles - Each | 15.8 | gal (US) |
| Brakes | ||
| Cab - FOPS | ||
| Cab - ROPS | ||
| Steering | ||
| Turning Dimensions - Steer Angle - Left/Right | ||
| Turning Dimensions - SAE Turning Radius | 340 | in |
| Turning Dimensions - Clearance Radius | 356 | in |
| Turning Dimensions - Inside Radius | 174 | in |
| Turning Dimensions - Aisle Width | 233 | in |
| Note | ||
| Lock to Lock | ||
| Hydraulic Excavator: 390 - Passes | ||
| Hydraulic Excavator: 374 - Passes | ||
| Wheel Loader: 982 - Passes | ||
| Wheel Loader: 980 - Passes | ||
| Wheel Loader: 972 - Passes | ||
| Note |
Standard Equipment
- NOTE
- OPERATOR ENVIRONMENT
- TECHNOLOGY
- ELECTRICAL AND LIGHTING
- POWERTRAIN
- SAFETY
- GUARDS
- OTHER STANDARD EQUIPMENT
Optional Equipment
- NOTE
- OPERATOR ENVIRONMENT
- TECHNOLOGY
- ELECTRICAL AND LIGHTING
- OPTIONAL EQUIPMENT
