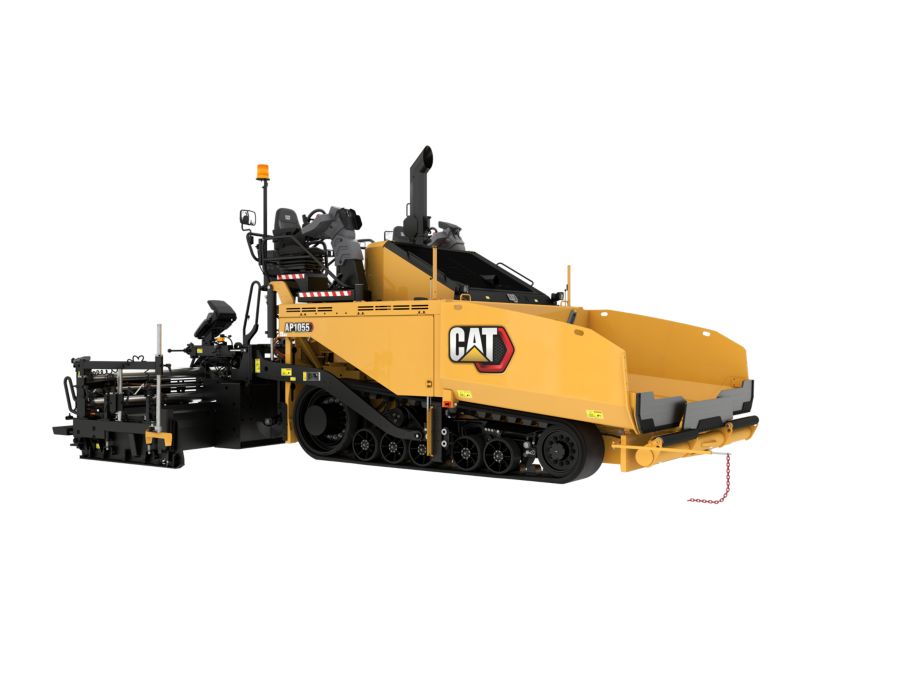

AP1055

Cat

The AP1055 is a high-production, rubber track paver that excels on airports runways, interstates, highways, and other large jobsites. Its high travel speed, flotation, and traction deliver superb mobility.

The AP1055 is a high-production rubber track paver that excels on airports runways, interstates, highways, and other large jobsites. Its high travel speed, flotation, and traction deliver superb mobility.

Brochures and Spec Sheets

Gallery

Specifications

Specification	Value	Unit
Paving Range with SE60 V
Engine Power (1)	225	hp
Engine Model (1)
Maximum Travel Speed	9	mile/h
Maximum Paving Speed	210	ft/min
Maximum Paving Speed - With Tamper Bar Screed	82	ft/min
Inside Turn Radius	1.5	ft
Operating weight with SE60 V	45,087	lb
Paving Range with SE60 FM
Paving Range with SE60 V XW
Paving Range with SE60 VT XW
Maximum Throughput Capacity	1766	ton(US)/h
Operating weight with SE60 FM	45,352	lb
Operating weight with SE60 V XW	46,573	lb
Shipping Weight - Paver Only	36,800	lb
Operating Length	22.3	ft
Operating Width	10.8	ft
Overall Height	12.25	ft
Transport Length	21.9	ft
Transport Width	9.8	ft
Transport Height	9.7	ft
Fuel Tank Capacity	92	gal (US)
DEF Tank	5	gal (US)
Cooling System	12	gal (US)
Hydraulic Oil Tank	58	gal (US)
Washdown Tank	7.9	gal (US)

Standard Equipment

Operating Environment
Powertrain
Electrical system
Material Delivery
Service and Maintenance
Safety

Optional Equipment

Technology
Operating Environment
Powertrain
Electrical System
Material Delivery
Service and Maintenance
Grade References
Screed Choices
