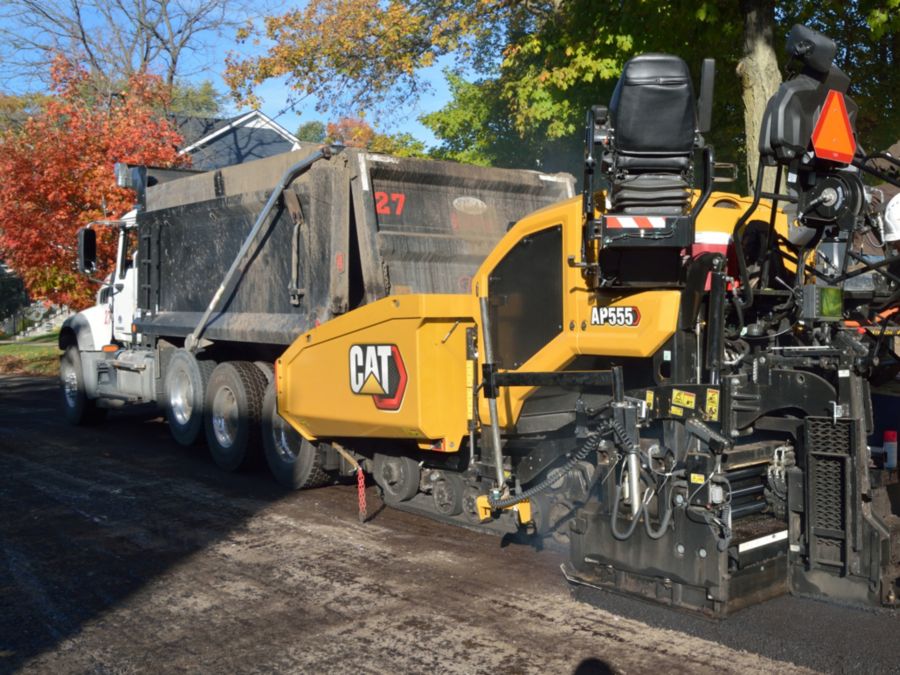

The AP555 Mobil-trac™ asphalt paver is sized right for both urban and rural applications. It delivers excellent traction and mobility as-well-as easy set-up, and a wide paving range making it the perfect fit for urban streets, parking lots, rural roads and many other small to intermediate-type applications.
The AP555 Mobil-trac™ asphalt paver is sized right for both urban and rural applications. It delivers excellent traction and mobility as-well-as easy set-up, and a wide paving range making it the perfect fit for urban streets, parking lots, rural roads and many other small to intermediate-type applications.

Brochures and Spec Sheets

Gallery

AP555 AP555 AP555 AP555 AP555 AP555

Specifications

Specification Value Unit
Paving Range with SE47 FM
Engine Power (1) 148 hp
Engine Model (1)
Maximum Paving Speed 200 ft/min
Maximum Travel Speed 7 mile/h
Operating weight with SE47 FM 33,689 lb
Paving Range with SE47 V
Maximum Throughput Capacity 1100 ton(US)/h
Operating weight with SE47 V 33,448 lb
Shipping Weight - Paver Only 26,993 lb
Truck Entry Height 22 in
Operating Length 19.25 ft
Operating Width 10.75 ft
Overall Height 10.75 ft
Transport Length 18.5 ft
Transport Width 8.5 ft
Transport Height 9.3 ft
Fuel Tank 53 gal (US)
DEF Tank 5 gal (US)
Cooling System - Total 6.3 gal (US)
Hydraulic Oil Tank 32 gal (US)
Washdown Spray Tank 8.5 gal (US)

Standard Equipment

  • Operating Environment
  • Technology
  • Powertrain
  • Electrical System
  • Material Delivery
  • Service and Maintenance
  • Safety

Optional Equipment

  • Operating Environment
  • Technology
  • Powertrain
  • Material Delivery
  • Safety
