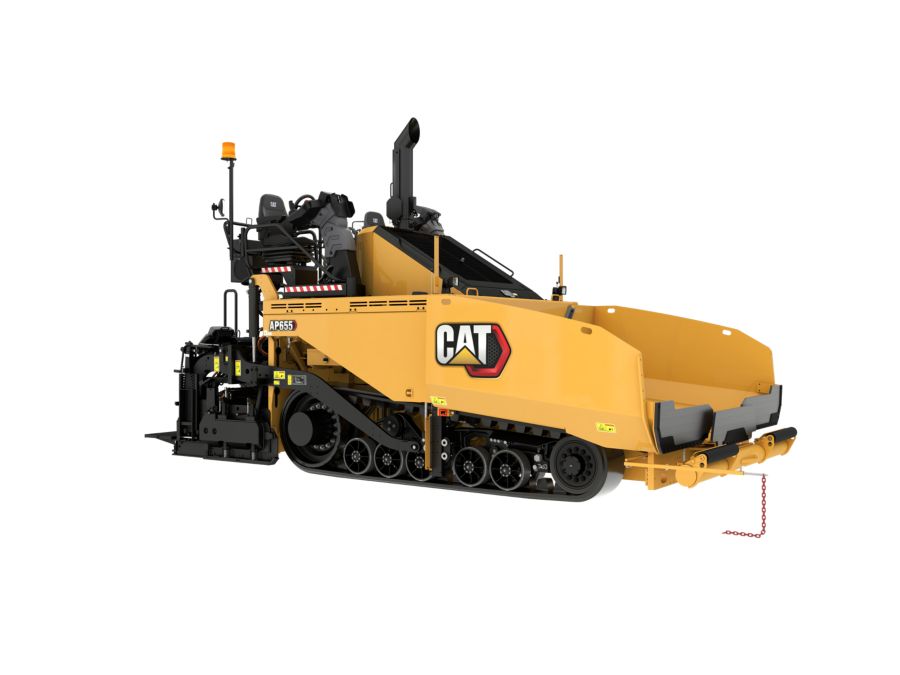

The AP655 asphalt paver is a rubber track paver that delivers a high-return on investment. This high-production paver offers a fast heating screed system, durable components, and easy to use technology, while consuming less fuel. A variety of screed choices provide versatility and high-quality results on interstates, highways, airports, and parking lots.
The AP655 asphalt paver is a rubber track paver that delivers a high-return on investment. This high-production paver offers a fast heating screed system, durable components, and easy to use technology, while consuming less fuel. A variety of screed choices provide versatility and high-quality results on interstates, highways, airports, and parking lots.

Brochures and Spec Sheets

Gallery

AP655 AP655 AP655 AP655 AP655

Specifications

Specification Value Unit
Paving Range with SE47 FM
Engine Power (1) 173 hp
Engine Model (1)
Maximum Travel Speed 9 mile/h
Maximum Paving Speed 210 ft/min
Inside Turn Radius 1.5 ft
Operating weight with SE47 FM 40,560 lb
Paving Range with SE50 V
Paving Range with SE60 V
Paving Range with SE60 FM
Maximum Throughput Capacity 1433 ton(US)/h
Operating weight with SE50 V 41,597 lb
Operating weight with SE60 FM 42,150 lb
Operating weight with SE60 V 41,890 lb
Shipping Weight - Paver Only 33,730 lb
Operating Length 21.75 ft
Operating Width 10.8 ft
Overall Height 12.3 ft
Transport Length 20.9 ft
Transport Width 9.8 ft
Transport Height 9.7 ft
Fuel Tank Capacity 73 gal (US)
DEF Tank 5 gal (US)
Cooling System 8 gal (US)
Hydraulic Oil Tank 58 gal (US)
Washdown Tank 7.9 gal (US)

Standard Equipment

  • Operating Environment
  • Technology
  • Powertrain
  • Electrical system
  • Material Delivery
  • Service and Maintenance
  • Safety

Optional Equipment

  • Technology
  • Operating Environment
  • Powertrain
  • Electrical System
  • Material Delivery
  • Service and Maintenance
  • Screed Choices
  • Grade References
