AP1000

AP1000
Cat
Request a Quote Find a Location

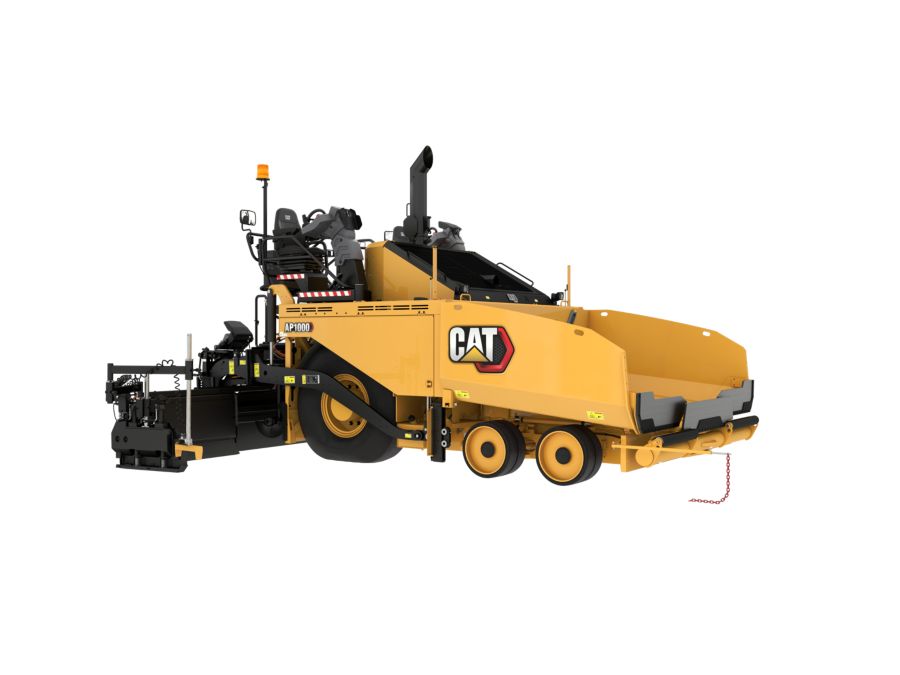

The Cat AP1000 Asphalt Paver is a wheel paver that delivers a high-return on investment with its fast-heating screed system, low fuel consumption, durable components, and easy to use technology. A variety of screed choices offer versatility and provide high-quality results on interstates, highways, airports, and parking lots.
The Cat AP1000 Asphalt Paver is a wheel paver that delivers a high-return on investment with its fast-heating screed system, low fuel consumption, durable components, and easy to use technology. A variety of screed choices offer versatility and provide high-quality results on interstates, highways, airports, and parking lots.

Brochures and Spec Sheets

Gallery

AP1000 AP1000 AP1000 AP1000 AP1000 AP1000 AP1000 AP1000 AP1000

Specifications

Specification Value Unit
Paving Range with SE60 FM
Engine Power (1) 225 hp
Engine Model
Maximum Travel Speed 12 mile/h
Maximum Paving Speed 250 ft/min
Maximum Paving Speed - With Tamper Bar Screed 82 ft/min
Inside Turn Radius 4.5 ft
Operating weight with SE60 FM 42,620 lb
Paving Range with SE60 V
Paving Range with SE60 V XW
Paving Range with SE60 VT XW
Maximum Throughput Capacity 1766 ton(US)/h
Operating weight with SE60 V 42,360 lb
Operating weight with SE60 V XW 43,848 lb
Shipping Weight - Paver Only 34,228 lb
Operating Length 22.3 ft
Operating Width 10.8 ft
Overall Height 12.3 ft
Transport Length 20.9 ft
Transport Width 11.9 ft
Transport Height 9.8 ft
Fuel Tank Capacity 92 gal (US)
DEF Tank 5 gal (US)
Cooling System - Total 12 gal (US)
Hydraulic Oil Tank 58 gal (US)
Washdown Spray Tank 7.9 gal (US)

Standard Equipment

  • Operating Environment
  • Powertrain
  • Electrical system
  • Electrical System
  • Material Delivery
  • Service and Maintenance
  • Safety

Optional Equipment

  • Operating Environment
  • Technology
  • Powertrain
  • Electrical System
  • Material Delivery
  • Service and Maintenance
  • Safety
  • Screed Choices
