AP400

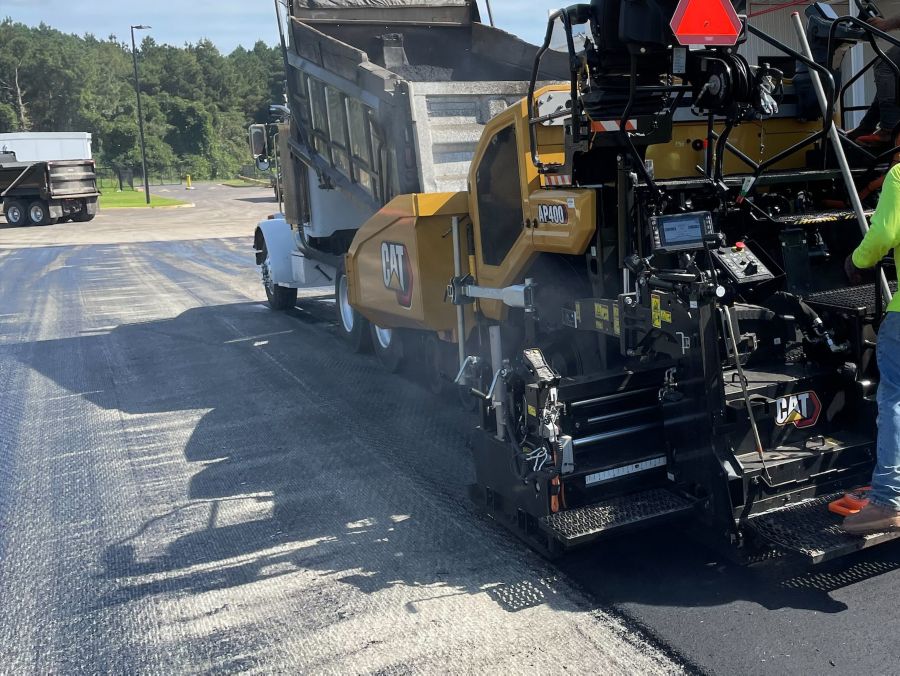

The AP400 is a wheel-type asphalt paver that provides easy transport, application versatility, and a wide paving range, making it the perfect match for urban streets, parking lots, rural roads and many other small to intermediate-type applications.
The AP400 is a wheel-type asphalt paver that provides easy transport, application versatility, and a wide paving range, making it the perfect match for urban streets, parking lots, rural roads and many other small to intermediate-type applications.
Brochures and Spec Sheets
Gallery
Specifications
| Specification | Value | Unit |
|---|---|---|
| Paving Range with SE47 FM | ||
| Gross Power | 120 | hp |
| Engine Model | ||
| Maximum Paving Speed | 200 | ft/min |
| Maximum Travel Speed | 10 | mile/h |
| Operating weight with SE47 FM | 30,000 | lb |
| Paving Range with SE47 V | ||
| Maximum Throughput Capacity | 853 | ton(US)/h |
| Operating weight with SE47 V | 29800 | lb |
| Shipping Weight - Paver Only | 23,327 | lb |
| Truck Entry Height | 21 | in |
| Operating Length | 19 | ft |
| Operating Width | 10.75 | ft |
| Overall Height | 11 | ft |
| Transport Length | 18.1 | ft |
| Transport Width | 8.5 | ft |
| Transport Height | 8.6 | ft |
| Fuel Tank | 53 | gal (US) |
| DEF Tank | 5 | gal (US) |
| Cooling System - Total | 6.3 | gal (US) |
| Hydraulic Oil Tank | 32 | gal (US) |
| Washdown Spray Tank | 8.5 | gal (US) |
Standard Equipment
- Operating Environment
- Technology
- Powertrain
- Electrical System
- Material Delivery
- Service and Maintenance
- Safety
Optional Equipment
- Operating Environment
- Technology
- Powertrain
- Material Delivery
- Safety
