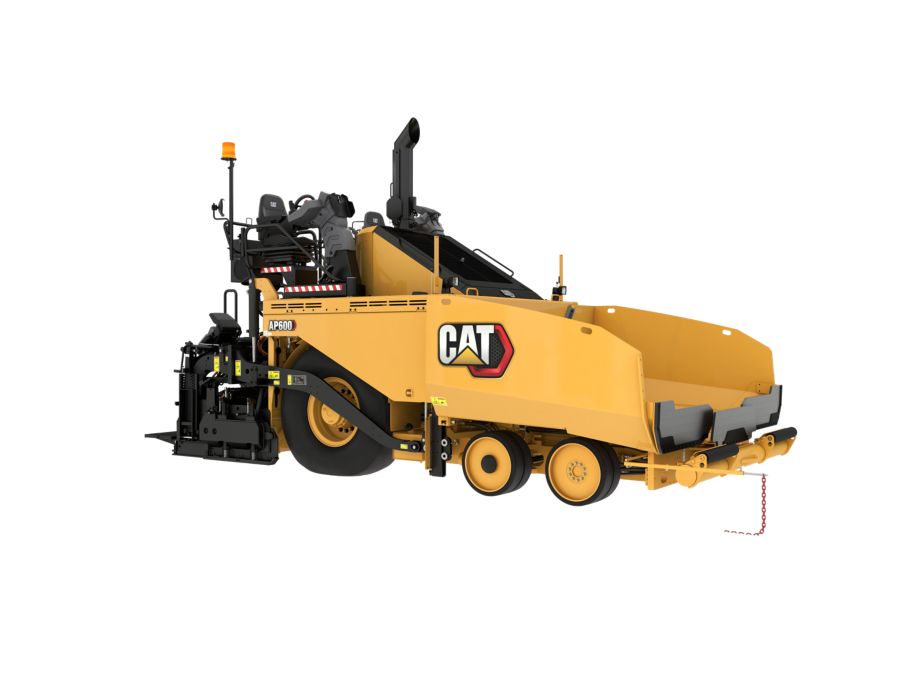

AP600

Cat

The AP600 is a mid to high production wheel paver that offers versatility for highways, rural roads, streets and other mid-sized projects. It can be equipped with either a front-mount extender screed or a rear-mount extender screed.

Brochures and Spec Sheets

Gallery

Specifications

Specification	Value	Unit
Paving Range with SE47 FM
Gross Power	173	hp
Engine Model
Maximum Travel Speed	10	mile/h
Maximum Paving Speed	250	ft/min
Inside Turn Radius	4.5	ft
Operating weight with SE47 FM	36,716	lb
Paving Range with SE50 V
Paving Range with SE60 FM
Paving Range with SE60 V
Maximum Throughput Capacity	1433	ton(US)/h
Operating weight with SE50 V	37,754	lb
Operating weight with SE60 FM	38,316	lb
Operating weight with SE60 V	38,056	lb
Shipping Weight - Paver Only	29,391	lb
Operating Length	21.75	ft
Operating Width	10.8	ft
Overall Height	12.5	ft
Transport Length	20.9	ft
Transport Width	9.8	ft
Transport Height	9.9	ft
Fuel Tank Capacity	73	gal (US)
DEF Tank	5	gal (US)
Cooling System - Total	8	gal (US)
Hydraulic Oil Tank	58	gal (US)
Washdown Spray Tank	7.9	gal (US)

Standard Equipment

Operating Environment
Technology
Powertrain
Electrical system
Material Delivery
Service and Maintenance
Safety

Optional Equipment

Operating Environment
Technology
Powertrain
Electrical System
Material Delivery
Service and Maintenance
Grade References
Screed Choices
