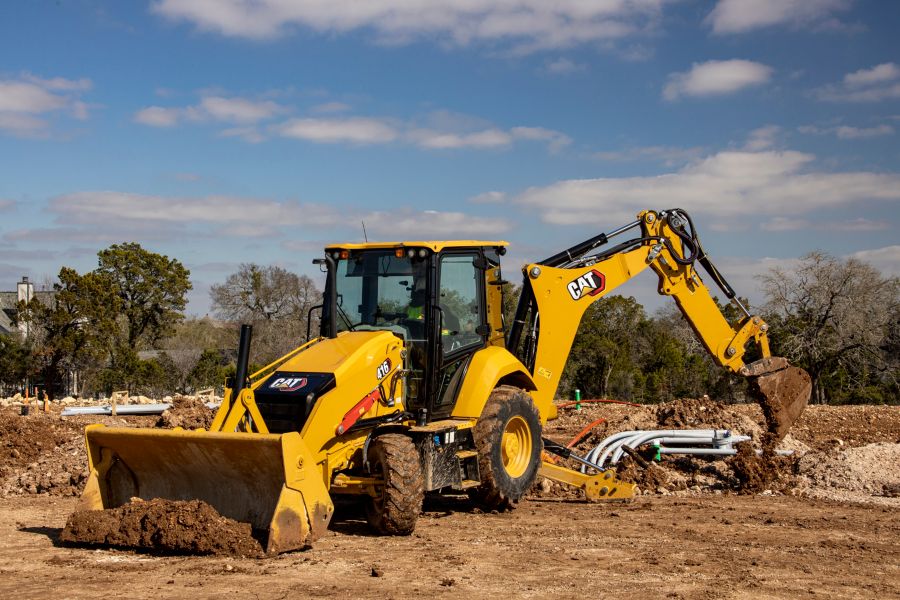

The Cat® 416 Backhoe Loader delivers exceptional performance, increased fuel efficiency, superior hydraulic system and an updated operator station.

Brochures and Spec Sheets

Gallery

416 416 416 416 416

Specifications

Specification Value Unit
Maximum Gross Power – SAE J1995: 2014
Engine Model
Emissions
Ratings at 2,200 rpm - Gross Power SAE J1995 75 hp
Ratings at 2,200 rpm - Gross Power ISO 14396 74 hp
Net Power Rating at 2,200 rpm - SAE J1349 70 hp
Net Power Rating at 2,200 rpm - ISO 9249 69 hp
Net Peak Power Rating @ 2,200 rpm - SAE J1349 69 hp
Net Peak Power Rating @ 2,200 rpm - ISO 9249 69 hp
Dimensions - Bore 3.86 in
Dimensions - Stroke 4.72 in
Displacement 220 in³
Net Torque Rise - 1,400 rpm - SAE J1349
Net Torque Rise - 1,400 rpm - SAE J1349 308 ft-lb
Power Rating Conditions - No De-Rating Required Up To 10000 ft
Engine Model
Emissions
Ratings at 2,200 rpm - Gross Power SAE J1995 96 hp
Ratings at 2,200 rpm - Gross Power ISO 14396 94 hp
Net Power Rating at 2,200 rpm - SAE J1349 85 hp
Net Power Rating at 2,200 rpm - ISO 9249 85 hp
Net Peak Power Rating @ 2,200 rpm - SAE J1349 85 hp
Net Peak Power Rating @ 2,200 rpm - ISO 9249 85 hp
Dimensions - Bore 3.86 in
Dimensions - Stroke 4.72 in
Displacement 220 in³
Net Torque Rise - 1,400 rpm
Net Torque Rise - 1,400 rpm - SAE J1349 292 lb/ft
Power Rating Conditions - No De-Rating Required Up To 10000 ft
Dig Depth - Standard 14 ft
Operating Weight - Maximum 24251 lb
Operating Weight - Estimated* 16532 lb
Operating Weight - Maximum - ROPS Capacity 24251 lb
Cab - ROPS/FOPS 306 lb
Auto-Shift Transmission 269 lb
Ride Control 33 lb
Air Conditioning 99 lb
All-Wheel Drive
MP Bucket (0.96 m3/1.25 yd3) - With Fold-Over Forks 2017 lb
MP Bucket (0.96 m3/1.25 yd3) - Without Fold-Over Forks 1642 lb
Loader QC 540 lb
Extendible Stick (excludes ft. counterweight) 613 lb
Counterweights, base 256 lb
Counterweights, base - Stackable, one 529 lb
Counterweights, base - Maximum 1014 lb
Note
Power Shuttle Transmission - Standard - Forward - 1st 3.4 mile/h
Power Shuttle Transmission - Standard - Forward - 2nd 5.7 mile/h
Power Shuttle Transmission - Standard - Forward - 3rd 13 mile/h
Power Shuttle Transmission - Standard - Forward - 4th 23 mile/h
Power Shuttle Transmission - Standard - Reverse - 1st 3.4 mile/h
Power Shuttle Transmission - Standard - Reverse - 2nd 5.7 mile/h
Power Shuttle Transmission - Standard - Reverse - 3rd 13 mile/h
Power Shuttle Transmission - Standard - Reverse - 4th 23 mile/h
Power-Shift Transmission - Optional - Forward - 2nd 5.8 mile/h
Power-Shift Transmission - Optional - Forward - 3rd 12 mile/h
Power-Shift Transmission - Optional - Forward - 4th 25 mile/h
Power-Shift Transmission - Optional - Forward -1st 3.7 mile/h
Power-Shift Transmission - Optional - Reverse - 1st 3.7 mile/h
Power-Shift Transmission - Optional - Reverse - 2nd 7.6 mile/h
Power-Shift Transmission - Optional - Reverse - 3rd 17 mile/h
Note
Front Axle, AWD - Static 26455 lb
Front Axle, AWD - Dynamic 20233 lb
Rear Axle - Static 28660 lb
Rear Axle - Dynamic 15432 lb
Type
Pump Type
Pump Capacity at 2,200 rpm 34.9 gpm
System Pressure - Backhoe 3336 psi
System Pressure - Loader 3336 psi
Type
Power Steering
Cylinder
Bore 2.6 in
Stroke 4.2 in
Rod Diameter 1.6 in
Axle Oscillation
Turning Circle - (inner wheel not braked) - Outside Front Wheels 26.92 ft
Turning Circle - (inner wheel not braked) - Outside Widest Loader Bucket 35.25 ft
Cooling System with Air Conditioning 4.8 gal (US)
Engine Oil - With Filter 2.4 gal (US)
Diesel Exhaust Fluid (DEF) 5 gal (US)
Fuel Tank 42.3 gal (US)
Transmission - Power Shuttle - AWD 4.8 gal (US)
Transmission - Power Shift - AWD 5 gal (US)
Rear Axle 4.2 gal (US)
Rear Axle - Planetaries 0.4 gal (US)
Front Axle (AWD) 2.9 gal (US)
Front Axle (AWD) - Planetaries 0.2 gal (US)
Hydraulic System 25.1 gal (US)
Hydraulic Tank 11.1 gal (US)
