432

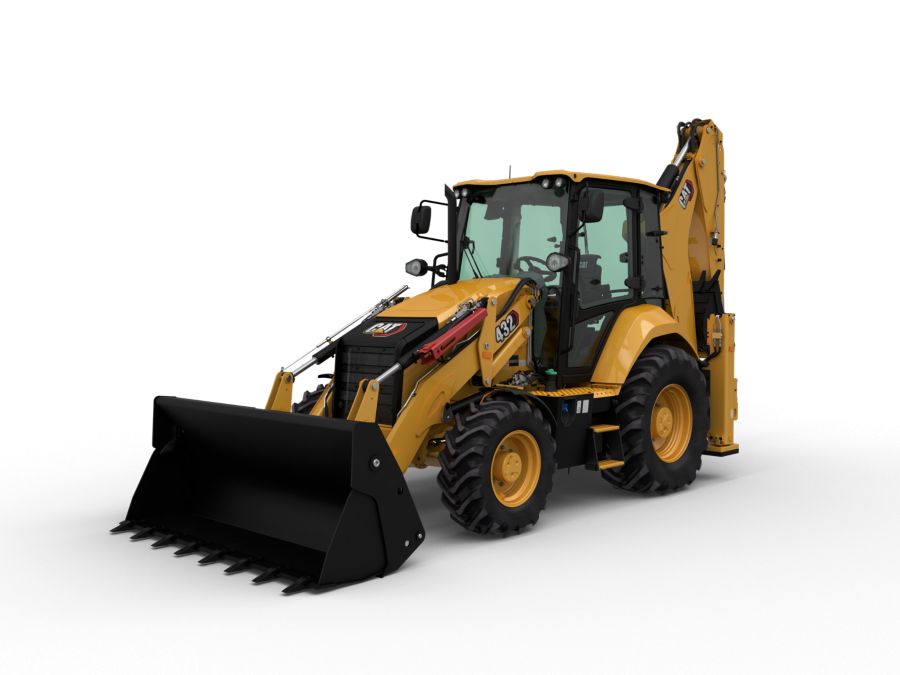

The Cat® 432 Backhoe Loader delivers exceptional performance, superior hydraulic system, versatility and an updated operator station.
Brochures and Spec Sheets
Gallery
Specifications
| Specification | Value | Unit |
|---|---|---|
| Net Power - SAE J1349:2011 | 92 | hp |
| Engine Model | ||
| Ratings at 2,200 rpm - Gross Power SAE J1995 | 103 | hp |
| Net Power Rating at 2,200 rpm - SAE J1349 | 92 | hp |
| Torque Rise (net) at 1,500 rpm - SAE J1349 Net | 322 | ft-lb |
| Power Rating Conditions - No De-Rating Required Up To | 10000 | ft |
| Dimensions - Bore | 3.86 | in |
| Net Peak Power - 1,800 rpm - ISO 9249 | 105 | hp |
| Dimensions - Stroke | 4.72 | in |
| Displacement | 220 | in³ |
| Ratings at 2,200 rpm - Gross Power ISO 14396 | 101 | hp |
| Net Peak Power - 1,800 rpm - SAE J1349 | 105 | hp |
| Net Power Rating at 2,200 rpm - ISO 9249 | 92 | hp |
| Emissions | ||
| Torque Rise (net) at 1,500 rpm | ||
| Operating Weight - Maximum | 24251 | lb |
| Operating Weight (estimated) | 20951 | lb |
| Air Conditioning | ||
| Loader Quick Coupler | ||
| Operating Weight - Maximum - ROPS Capacity | 24251 | lb |
| Ride Control | ||
| Power-Shift Transmission | ||
| All-Wheel Drive | ||
| Cab, ROPS/FOPS | ||
| Note | ||
| Power Shift Transmission - Standard - Reverse - 1st | 3.7 | mile/h |
| Power Shift Transmission - Standard - Forward - 1st | 3.7 | mile/h |
| Power Shift Transmission - Standard - Reverse - 2nd | 7.7 | mile/h |
| Power Shift Transmission - Standard - Forward - 3rd | 12 | mile/h |
| Power Shift Transmission - Standard - Forward - 2nd | 5.9 | mile/h |
| Power Shift Transmission - Standard - Forward - 4th | 24.8 | mile/h |
| Power Shift Transmission - Standard - Reverse - 3rd | 17 | mile/h |
| Note (1) | ||
| Rear Axle - Static | 58422 | lb |
| Front Axle, AWD - Static | 51808 | lb |
| Rear Axle - Dynamic | 22046 | lb |
| Front Axle, AWD - Dynamic | 19841 | lb |
| System Pressure - Backhoe | 3626 | psi |
| Pump Capacity at 2,200 rpm | 49.4 | gpm |
| System Pressure - Loader | 3626 | psi |
| Type | ||
| Pump Type | ||
| Power Steering | ||
| Type | ||
| Turning Circle - (inner wheel not braked) - Outside Front Wheels | 26.92 | ft |
| Turning Circle - (inner wheel not braked) - Outside Widest Loader Bucket | 35.25 | ft |
| Axle Oscillation | ||
| Stroke | 4.2 | in |
| Bore | 2.6 | in |
| Rod Diameter | 1.6 | in |
| Cylinder | ||
| Rear Axle - Planetaries | 0.4 | gal (US) |
| Rear Axle | 4.2 | gal (US) |
| Hydraulic System | 25.1 | gal (US) |
| Diesel Exhaust Fluid (DEF) | 5 | gal (US) |
| Front Axle (AWD) | 2.9 | gal (US) |
| Fuel Tank | 42.3 | gal (US) |
| Engine Oil - With Filter | 2.4 | gal (US) |
| Front Axle (AWD) - Planetaries | 0.2 | gal (US) |
| Cooling System with Air Conditioning | 4.8 | gal (US) |
| Hydraulic Tank | 11.1 | gal (US) |
| Transmission - Power Shift - AWD | 5 | gal (US) |
