PM310

Caterpillar

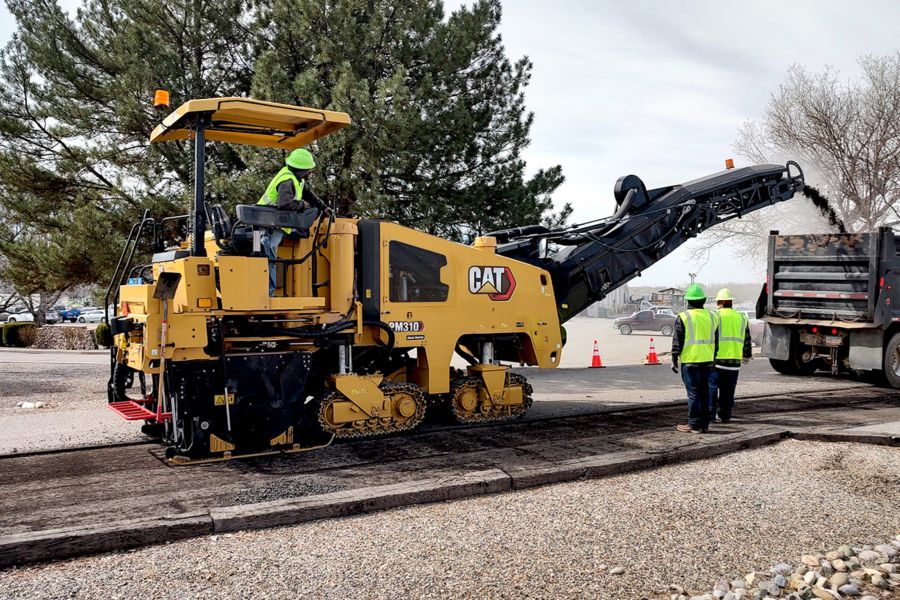

Cat^® PM310 Cold Planers with integrated Cat Grade and Slope technology and the latest System K rotors are equipped to deliver performance, productivity and cutting precision. A comfortable operator environment puts intuitive controls at your fingertips, while long service intervals and easy maintenance access help simplify service. Although designed for a single operator, the PM310 includes features for supporting ground personnel. Many options are available to enhance machine versatility when optimum maneuverability or high production capabilities are required.

Brochures and Spec Sheets

Gallery

Specifications

Specification	Value	Unit
Milling Width	39.4	in
Rated Power	343	hp
Operating Weight	46770	lb
Maximum Milling Depth	13	in
Rotor Speeds
Number of Bits
Engine
Maximum Travel Speed	3.4	mile/h
Maximum Milling Speed	108	ft/min
Operating Length - Conveyor Up	36.45	ft
Operating Width	8.33	ft
Height - Canopy	12.3	ft
Maximum Truck Clearance	15.42	ft
Minimum Right Cutting Radius	6.3	ft
Minimum Left Cutting Radius	13.58	ft
Conveyor Swing
Transport Length	30.58	ft
Transport Width	8.33	lb/in
Transport Height	9.84	ft
Transport Weight	45869	lb
Water Spray System Tank	332.9	gal (US)
Hydraulic Tank	14.5	gal (US)
Diesel Exhaust Fluid (DEF) Tank	12.4	gal (US)
Engine Oil	7.9	gal (US)
Cooling System	16.9	gal (US)
Fuel Tank	137.9	gal (US)

Standard Equipment

NOTE
OPERATOR ENVIRONMENT
CAT® TECHNOLOGY
POWERTRAIN
HYDRAULIC SYSTEM
ROTOR SYSTEM
SERVICE AND MAINTENANCE
SAFETY AND SECURITY

Optional Equipment

NOTE
OPERATOR ENVIRONMENT
CAT® TECHNOLOGY
CONVEYOR
POWERTRAIN
HYDRAULIC SYSTEM
ROTOR SYSTEM
SERVICE AND MAINTENANCE
SAFETY AND SECURITY
