PM313

Caterpillar

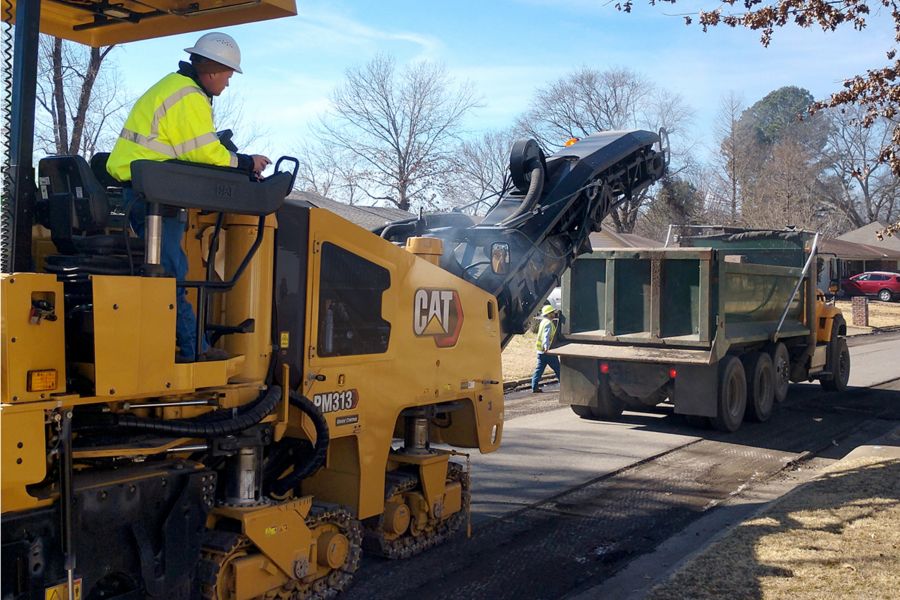

Cat^® PM313 Cold Planers with integrated Cat Grade and Slope technology and the latest System K rotors are equipped to deliver performance, productivity and cutting precision. A comfortable operator environment puts intuitive controls at your fingertips, while long service intervals and easy maintenance access help simplify service. Although designed for a single operator, the PM313 includes features for supporting ground personnel. Many options are available to enhance machine versatility when optimum maneuverability or high production capabilities are required.

Brochures and Spec Sheets

Gallery

Specifications

Specification	Value	Unit
Milling Width	51.2	in
Rated Power	343	hp
Operating Weight	47522	lb
Maximum Milling Depth	13	in
Rotor Speeds
Number of Bits
Engine
Maximum Travel Speed	3.4	mile/h
Maximum Milling Speed	108	ft/min
Operating Length - Conveyor Up	36.45	ft
Operating Width	8.33	ft
Height - Canopy	12.3	ft
Maximum Truck Clearance	15.42	ft
Minimum Right Cutting Radius	6.3	ft
Minimum Left Cutting Radius	13.58	ft
Conveyor Swing
Transport Length	30.58	ft
Transport Width	8.33	lb/in
Transport Height	9.84	ft
Transport Weight	46622	lb
Fuel Tank	137.9	gal (US)
Engine Oil	7.9	gal (US)
Hydraulic Tank	14.5	gal (US)
Cooling System	16.9	gal (US)
Diesel Exhaust Fluid (DEF) Tank	12.4	gal (US)
Water Spray System Tank	332.9	gal (US)

Standard Equipment

NOTE
OPERATOR ENVIRONMENT
CAT® TECHNOLOGY
POWERTRAIN
HYDRAULIC SYSTEM
ROTOR SYSTEM
SERVICE AND MAINTENANCE
SAFETY AND SECURITY

Optional Equipment

NOTE
OPERATOR ENVIRONMENT
CAT® TECHNOLOGY
CONVEYOR
POWERTRAIN
HYDRAULIC SYSTEM
ROTOR SYSTEM
SERVICE AND MAINTENANCE
SAFETY AND SECURITY
