PM620

Caterpillar

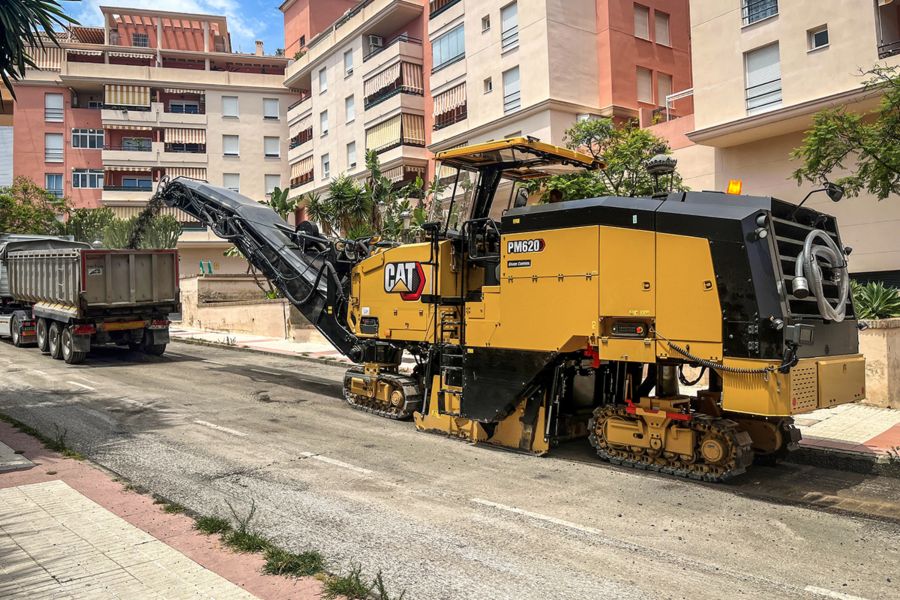

The Cat^® PM620 Cold Planer with integrated Cat Grade and Slope technology, automated systems and the latest System K rotors helps you meet the demands of the job with efficiency. A comfortable work environment and intuitive controls are designed to keep operators productive throughout the day. Easy access to daily service points helps simplify maintenance. Multiple options are available to enhance versatility for high production applications.

Brochures and Spec Sheets

Gallery

Specifications

Specification	Value	Unit
Gross Power	636	hp
Engine Power	629	hp
Engine
Emissions
Maximum Milling Speed	328	ft/min
Maximum Travel Speed	3.7	mile/h
Build Number
Milling Width	79.1	in
Number of Bits
Note (1)
Maximum Milling Depth	13	in
Rotor Speeds
Minimum Left Cutting Radius	6.56	ft
Minimum Right Cutting Radius	6.56	ft
Operating Weight	69575	lb
Note (1)
Transport Weight	66865	lb
Note (2)
Operating Length - Conveyor Up	47.64	ft
Operating Width	10.2	ft
Height - Canopy	13.29	ft
Maximum Truck Clearance	15.94	ft
Conveyor Swing
Transport Length	40.78	ft
Transport Width	8.14	ft
Transport Height	9.84	ft
Fuel Tank	292.7	gal (US)
Diesel Exhaust Fluid (DEF) Tank	12.4	gal (US)
Cooling System	22.5	gal (US)
Engine Oil	17.2	gal (US)
Hydraulic Tank	29.9	gal (US)
Water Spray System Tank	898.2	gal (US)
Recyclability

Standard Equipment

NOTE
OPERATOR ENVIRONMENT
CAT® TECHNOLOGY
CONVEYOR
ROTOR SYSTEM
POWERTRAIN
HYDRAULIC SYSTEM
SERVICE AND MAINTENANCE
SAFETY AND SECURITY

Optional Equipment

NOTE
OPERATOR ENVIRONMENT
CAT® TECHNOLOGY
CONVEYOR
ROTOR SYSTEM
POWERTRAIN
HYDRAULIC SYSTEM
SERVICE AND MAINTENANCE
SAFETY AND SECURITY
