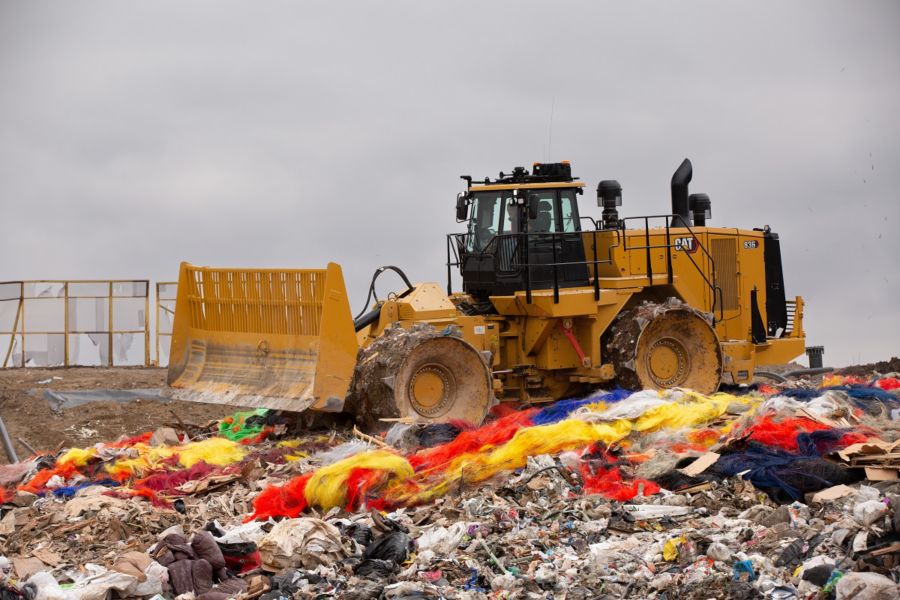

The Cat® 836 Landfill Compactor is designed with heavy-duty main structures that support multiple life cycles, features a Cat C18 engine, single-lever steering, pressurized cab, and wheel/tip options that help provide extended service life. Available Cat Compact Technologies further enhance compaction performance and consistency by providing accurate compaction values and 3D mapping.
Cat Landfill Compactors are designed with durability built in, ensuring maximum availability through multiple life cycles. With optimized performance and simplified serviceability, our machines allow you to operate more efficiently and safely. Introduced in 1993, the 836 has been an industry leader for over 30 years. Focused on helping our customers succeed, we have continued to build upon each new series. The 836 continues our legacy of reliability, performance, safety, operator comfort, serviceability, and efficiency.

Brochures and Spec Sheets

Gallery

836 836 836 836 836 836

Specifications

Specification Value Unit
Gross Power - SAE J1995:2014 562 hp
Net Power - SAE J1349:2011 496 hp
Net Power - ISO 9249:2007 502 hp
Engine Model
Emissions
Rated Speed
Engine Power - ISO 14396:2002 553 hp
Emissions
Rated Speed
Net Power - SAE J1349:2011 496 hp
Net Power - ISO 9249:2007 502 hp
Gross Power - SAE J1995:2014 562 hp
Engine Power - ISO 14396:2002 553 hp
Peak Torque ( 1,400 rpm ) 2275 lbf·ft
Torque Rise
Bore 5.71 in
Stroke 7.2 in
Displacement 1104.5 in³
High Idle Speed 2120 r/min
Low Idle Speed 750 r/min
Maximum Altitude - Without Derating 7500 ft
Note
Operating Weight (Tier 4 Final/Stage V) 124063 lb
Operating Weight (Tier 3/Stage IIIA equivalent) 123321 lb
Maximum Operating Weight (Tier 4 Final/Stage V) 126364 lb
Maximum Operating Weight (Tier 3/Stage IIIA equivalent) 125622 lb
Transmission Type
Direct Drive - Forward 1 4.3 mile/h
Direct Drive - Forward 2 7.8 mile/h
Direct Drive - Reverse 1 4.6 mile/h
Direct Drive - Reverse 2 8.2 mile/h
Lift System - Circuit
Lift System - Pump
Max Flow @ 2000 rpm 79 gpm
Relief Valve Setting - Lift 4206 psi
Cylinders, Double Acting: Lift, Bore, Stroke
Pilot System
Pilot Relief Valve Setting 551 psi
Steering System - Circuit
Steering System - Pump
Max Flow @ 2000 rpm 79 gpm
Relief Valve Setting - Steering 3495 lb/in²
Total Steering Angle
Steering Cycle Times - High Idle 3.9 s
Steering Cycle Times - Low Idle 6.4 s
Fuel Tank 209.0 gal (US)
Diesel Exhaust Fluid Tank 9 gal (US)
Cooling Systems - Tier 4 Final/EU Stage V 40 gal (US)
Cooling System - Tier 3/Stage IIIA Equivalent 37.2 gal (US)
Engine Crankcase 16 gal (US)
Transmission 21.9 gal (US)
Differential - Final Drives - Front 49.0 gal (US)
Differential - Final Drives - Rear 50.0 gal (US)
Hydraulic System - Implement/Steering 46.2 gal (US)
Hydraulic Tank Only 27.2 gal (US)
Note
Air Conditioning
Front
Rear
Oscillation Angle
Service Brakes
Parking Brake
Operator Sound Pressure Level (ISO 6396:2008) 72 dB(A)
Machine Sound Power Level (ISO 6395:2008) 112 dB(A)
Operator Sound Pressure Level (ISO 6396:2008)* 72 dB(A)
Machine Sound Power Level (ISO 6395:2008)* 109 dB(A)
Note (1)
Note (2)
Note (3)
Note (4)
Operator Sound Pressure Level (ISO 6396:2008) 72 dB(A)
Machine Sound Power Level (ISO 6395:2008) 112 dB(A)
Operator Sound Pressure Level (ISO 6396:2008)* 72 dB(A)
Machine Sound Power Level (ISO 6395:2008)* 110 dB(A)
Note (1)
Note (2)
Note (3)
Note (4)
Height to Top of Beacon 15.2 ft
Height to Top of Air Conditioning Condenser 15.2 ft
Height - Cab Roof 14.1 ft
Height - Top of Exhaust Pipe 15.1 ft
Height - Top of Hood 11.3 ft
Ground Clearance to Hitch 2.1 ft
Ground Clearance to Transmission Guard 2.1 ft
Ground Clearance to Bottom of Bumper 3.2 ft
Centerline of Rear Axle to Rear Compactor Guard 11.3 ft
Hitch to Centerline of Front Axle 7.5 ft
Wheel Base 14.9 ft
Width over Front Striker Bars 12.9 ft
Width over Rear Striker Bars 12.9 ft
Width over Platform 10.5 ft
Width over Drums 14.0 ft
Overall Machine Length with Semi U-Blade 35.8 ft
Capacity 25.9 yd³
Overall Width 17.0 ft
Height 7.4 ft
Height of Cutting Edge 3.7 ft
Digging Depth 1.2 ft
Ground Clearance 5.7 ft
Turning Radius – Outside Corner of Blade 28.7 ft
Turning Radius - Inside of Wheels 11.9 ft
Weight 6894 lb
Total Operating Weight 123000 lb
Capacity 29.3 yd³
Overall Width 17.4 ft
Height 7.5 ft
Height of Cutting Edge 4.1 ft
Digging Depth 1.2 ft
Ground Clearance 5.7 ft
Turning Radius – Outside Corner of Blade 28.9 ft
Turning Radius – Inside of Wheels 11.9 ft
Weight 7963 lb
Total Operating Weight 124063 lb
Capacity 33.6 yd³
Overall Width 17.4 ft
Height 7.2 ft
Height of Cutting Edge 4.1 ft
Digging Depth 3.1 ft
Ground Clearance 3.9 ft
Turning Radius – Outside Corner of Blade 28.8 ft
Turning Radius – Inside of Wheels 11.9 ft
Weight 7696 lb
Total Operating Weight 123785 lb
Combination Tips (Weight Group) 28250 lb
Plus Tips - Weight (Group) 29784 lb
Paddle Tips - Weight (Group) 272227 lb
Diamond Tips Weight (Group) 32659 lb
Outside Diameter 83.8 in
Outside Diameter - Diamond 84.3 in
Drum Diameter 69.7 in
Drum Width 55.1 in
Feet Per Row
Feet Per Wheel
Replaceable
Width Over Drums 4280 mm
Tip Height 179 mm
Tip Height - Diamond 7.25 in

Standard Equipment

  • NOTE
  • POWERTRAIN
  • ELECTRICAL
  • OPERATOR ENVIRONMENT
  • WHEELS AND CLEANER BARS
  • GUARDS
  • BLADES
  • FLUIDS
  • OTHER STANDARD EQUIPMENT

Optional Equipment

  • NOTE
  • Various blades:
  • Various tip and wheel arrangements:
  • WHEELS AND CLEANER BARS
