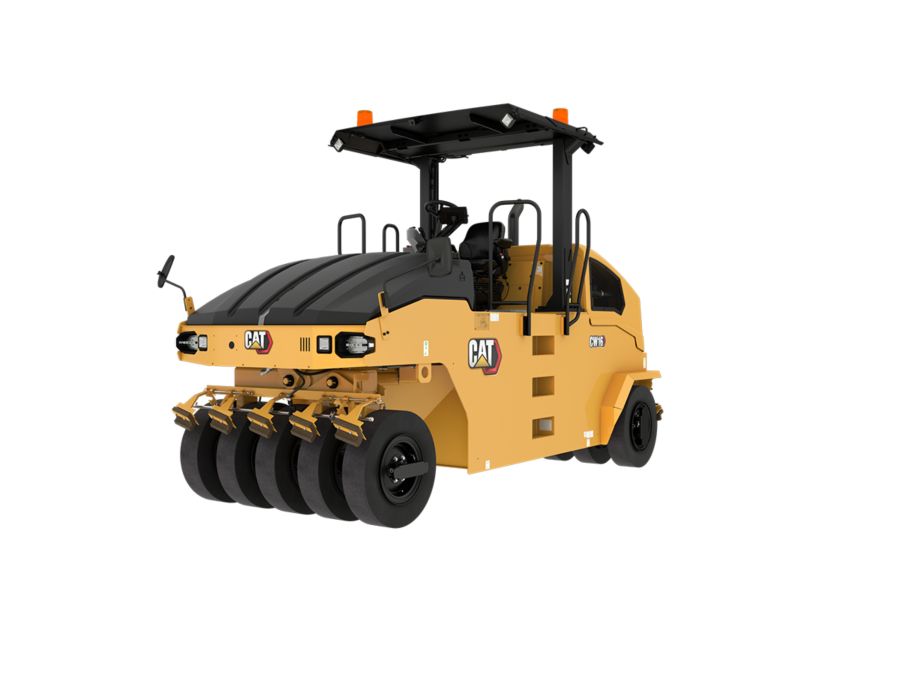

The Cat® CW16 is a standard 9-wheel Pneumatic Roller with an operating weight range of 5200 kg to 15 000 kg (11,164 lb - 33,069 lb) and compaction width of 1754 mm (69"). An optional 11-wheel option increases the compaction width to 2132 mm (84"). Equipped with an efficient Cat engine, this machine delivers smooth, reliable performance on grades and soft base materials.
The Cat® CW16 is a standard 9-wheel Pneumatic Roller with an operating weight range of 5200 kg to 15 000 kg (11,164 lb - 33,069 lb) and compaction width of 1754 mm (69"). An optional 11-wheel option increases the compaction width to 2132 mm (84"). Equipped with an efficient Cat engine, this machine delivers smooth, reliable performance on grades and soft base materials.

Brochures and Spec Sheets

Gallery

CW16 CW16 CW16

Specifications

Specification Value Unit
Operating Weight - 9 Wheel Base Machine 11466 lb
Operating Weight - Maximum Ballast 33069 lb
Compaction Width 69 in
9 Wheel Compaction Width - With Radial Tire 68 in
Overall Length 14.1 ft
Height - ROPS 9.8 ft
Height - Steering Wheel 91 in
Travel Speed - Maximum 12 mile/h
Ground Clearance 9.5 in
Inside Turn Radius - 9 Wheel 148 in
Turning Radius - Outside 255 in
Engine Model
Gross Power 100.6 hp
Fuel Tank Capacity 38 gal (US)
Water Spray Tank Capacity 92 gal (US)

Standard Equipment

  • Operating Environment
  • Powertrain
  • Electrical System
  • Wheels and Spray System
  • Service and Maintenance
  • Safety

Optional Equipment

  • Operating Environment
  • Technology
  • Powertrain
  • Wheels and Spray System
  • Service and Maintenance
  • Safety
